Create expressive images on the go with the world’s smallest and lightest ultra-wide-angle zoom lens for APS-C cameras*

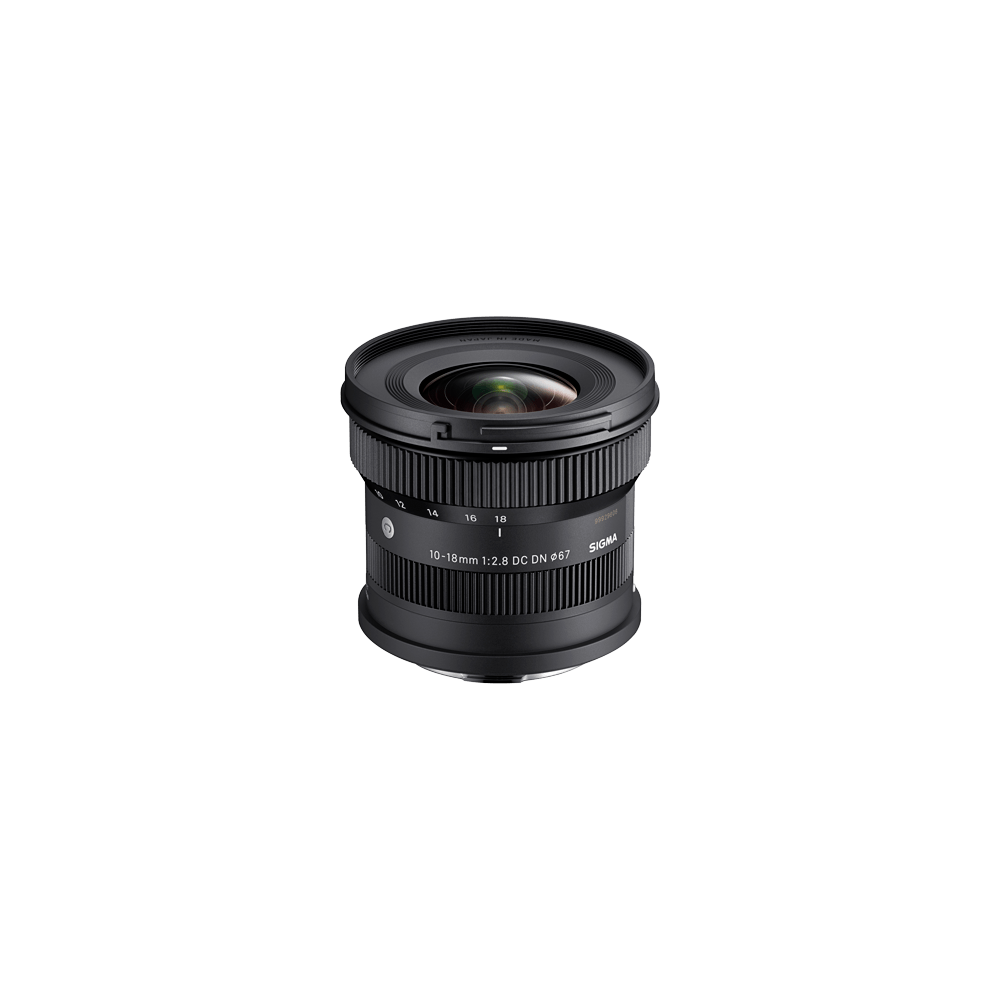

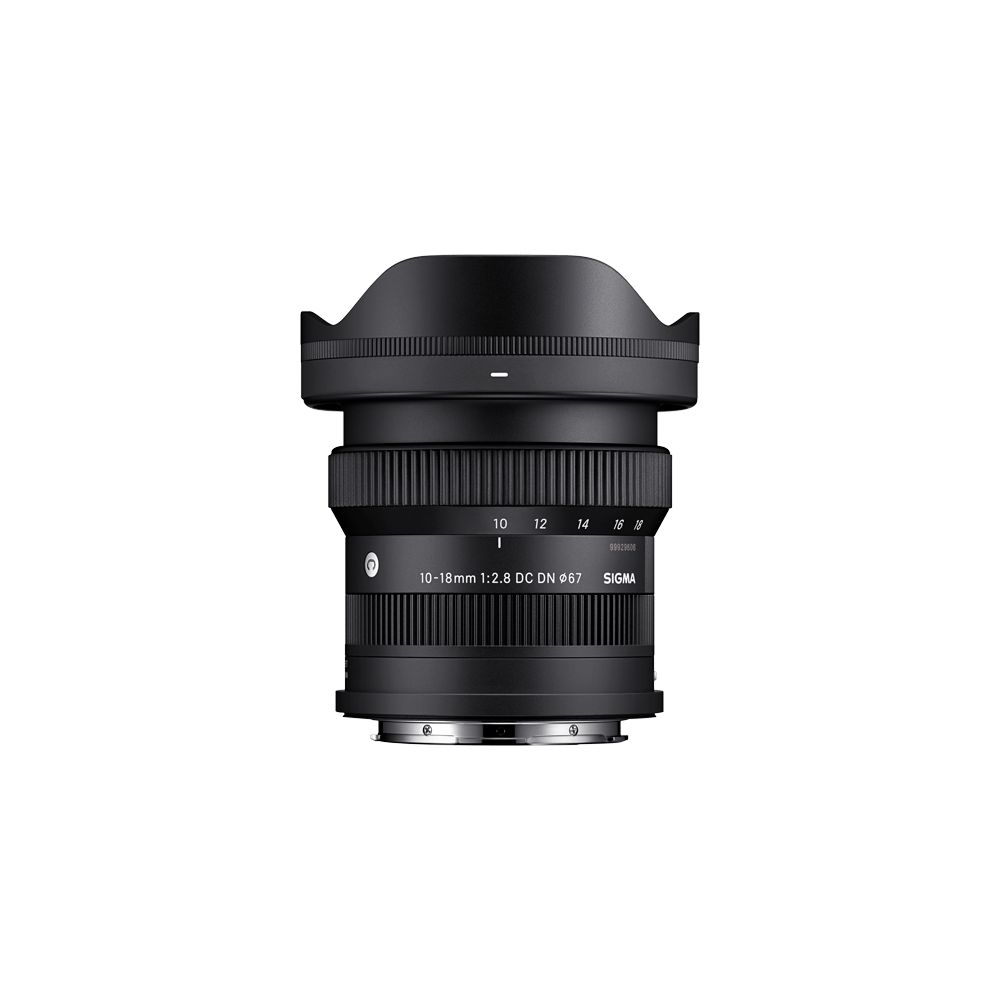

The Sigma 10-18mm F2.8 DC DN | Contemporary is the world’s smallest and lightest ultra-wide-angle zoom lens for APS-C cameras*, covering an effective focal range of 15-27mm (35mm equivalent). With ultra-sharp optics, a bright F2.8 aperture and a newly developed push-on petal type lens hood, photographers can create expressive images anytime, anywhere. The lens features a unique aspherical element that reduces the overall size of the lens and enhances image quality.
An 11.6cm (1:4) minimum focusing distance to produce unique compositions, with expansive backgrounds and pleasing bokeh. With a weight of only 260g*, a fast AF stepping motor and minimal focus breathing, the lens can be easily mounted onto a motorized gimbal to create impressive video content for social media use and professional projects.
*As an AF F2.8 zoom lens for mirrorless cameras with an APS-C sensor. As of October, 2023 by Sigma.
*The values are for L-mount.
| Camera Type | Mirroless |
|---|---|
| Corresponding Mount | L-Mount,Canon RF Mount,FUJIFILM X Mount,Sony E-mount |
| Sensor Format | APS-C [DC] |
| Lens Construction | 13 elements in 10 groups (3 FLD, 1 SLD, and 4 aspherical elements) |
| Angle of View | L-Mount：109.7°-76.5° Canon RF Mount：106.6°-73.4° FUJIFILM X Mount：109.7°-76.5° Sony E-mount：109.7°-76.5° |
| Number of Diaphragm Blades | 7 (rounded diaphragm) |
| Minimum Aperture | F22 |
| Minimum Focusing Distance | 11.6 (W) -19.1 (T) cm / 4.6 (W) -7.6 (T) in. |
| Maximum Magnification Ratio | 1:4 (W) – 1:6.9 (T) |
| Filter Size | φ67mm |
| Dimensions (Diameter × Length) | L-Mount：φ72.2mm × 62.0mm / φ2.8in. × 2.4in. |
| Weight | L-Mount：260g / 9.2oz. Canon RF Mount：270g / 9.5oz. FUJIFILM X Mount：250g / 8.8oz. Sony E-mount：255g / 9.0oz. |
| Edition Number | C023 The three-digit code on the surface of the lens is to indicate the year the lens was first released. |
| Supplied Accessories | Push-on petal type hood LH706-02 |
| Mount / Product Barcode | L-Mount：00-85126-20769-4 Canon RF Mount：00-85126-20772-4 FUJIFILM X Mount：00-85126-20775-5 Sony E-mount：00-85126-20765-6 |
| Camera Compatibility | LINK |
* The appearance and specifications of the product are subject to change. |
Large-aperture, ultra-wide-angle zoom with expressive imaging capabilities
By utilizing unique optics which have been designed to correct lens aberrations, the Sigma 10-18mm F2.8 DC DN | Contemporary produces images that are sharp across the entire image.
Aspherical lens, special low-dispersion glass
The use of an aspherical lens with large eccentricity and refractive index as the first lens element has enabled a lens construction with a reduced number of elements. Used in conjunction with multiple aspherical lenses and special low-dispersion glass, the lens can produce high resolution images whilst remaining compact and lightweight.
Minimum focusing distance 11.6cm, maximum magnification ratio 1:4
Create expressive close-up images using the 11.6cm minimum focusing distance when shooting at 10mm. With a magnification ratio of 1:4, the lens captures unique portraits, still life and more.
Extremely compact and lightweight

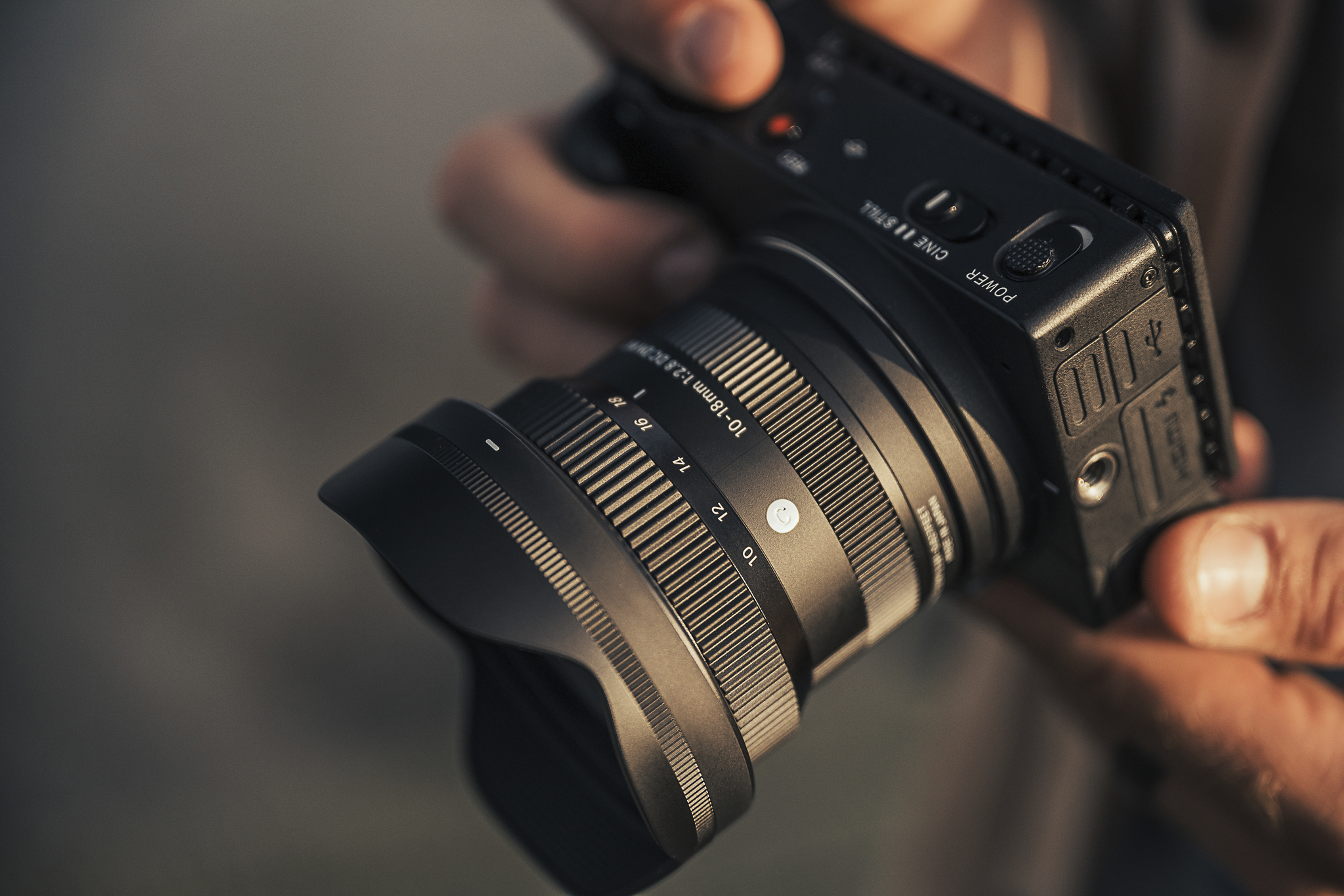

The Sigma 10-18mm F2.8 DC DN | Contemporary is the world’s smallest and lightest ultra-wide-angle zoom lens for APS-C cameras*, with a length of 62.0mm, a maximum diameter of 72.2mm, and a weight of 260g*. The lens can be carried around with ease or attached to an APS-C mirrorless camera and a gimbal to create an ultra-portable video setup.
*As an AF F2.8 zoom lens for mirrorless cameras with an APS-C sensor. As of October, 2023 by Sigma.
*The values are for L-mount.
Newly developed push-on petal type hood
A newly developed push-on petal type hood is included with the lens. Unlike the conventional bayonet type lens hoods that attach with a rotating movement, this push-on type lens hood is attached onto the lens using a spring and lever system. The implementation of this new design reduces the size and thickness of the hood so that it matches the compact size of the lens.
Compact, lightweight, high-performance F2.8 constant aperture zoom lens series
When combined with the Sigma 18-50mm F2.8 DC DN | Contemporary, a total, unbroken focal range of 15-75mm (35mm equivalent) with a constant F2.8 aperture can be covered. The combined weight of both lenses is only 550g.
*The values are for L-mount.

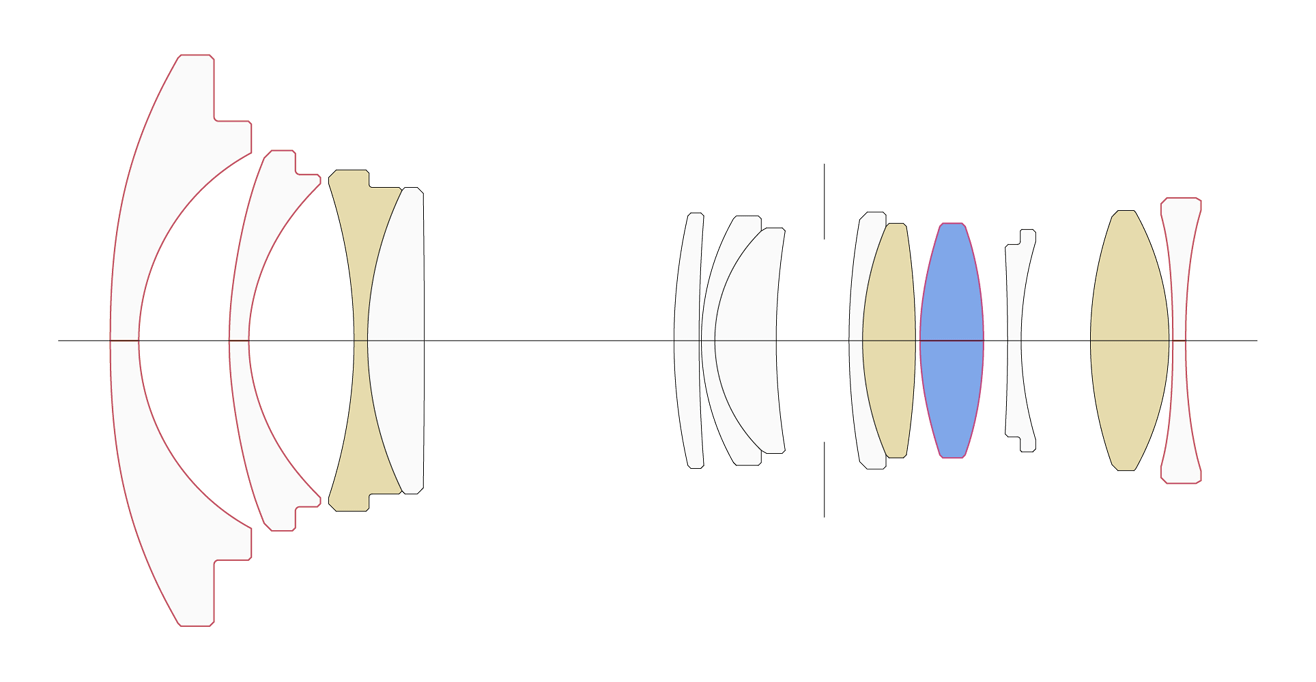

LENS CONSTRUCTION
MTF Chart
DIFFRACTION MFT
DIFFRACTION MFT
GEOMETRICAL MFT
GEOMETRICAL MFT
MTF CHART GUIDE
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
| Camera | SIGMA fp L |
|---|---|
| Shutter Speed | 1/2500s |
| Lens F Number | F2.8 |
| ISO | 100 |
| Focal Length | 10mm |
| Photographer | Graham Sheldon |
| Camera | Sony α7R V |
|---|---|
| Shutter Speed | 1/60s |
| Lens F Number | F11 |
| ISO | 200 |
| Focal Length | 10mm |
| Photographer | Masato Ono |
| Camera | FUJIFILM X-T5 |
|---|---|
| Shutter Speed | 1/640s |
| Lens F Number | F2.8 |
| ISO | 250 |
| Focal Length | 11mm |
| Photographer | Liam Doran |
| Camera | Canon EOS R10 |
|---|---|
| Shutter Speed | 1/80s |
| Lens F Number | F2.8 |
| ISO | 3200 |
| Focal Length | 18mm |
| Photographer | Reina Kanamori |
