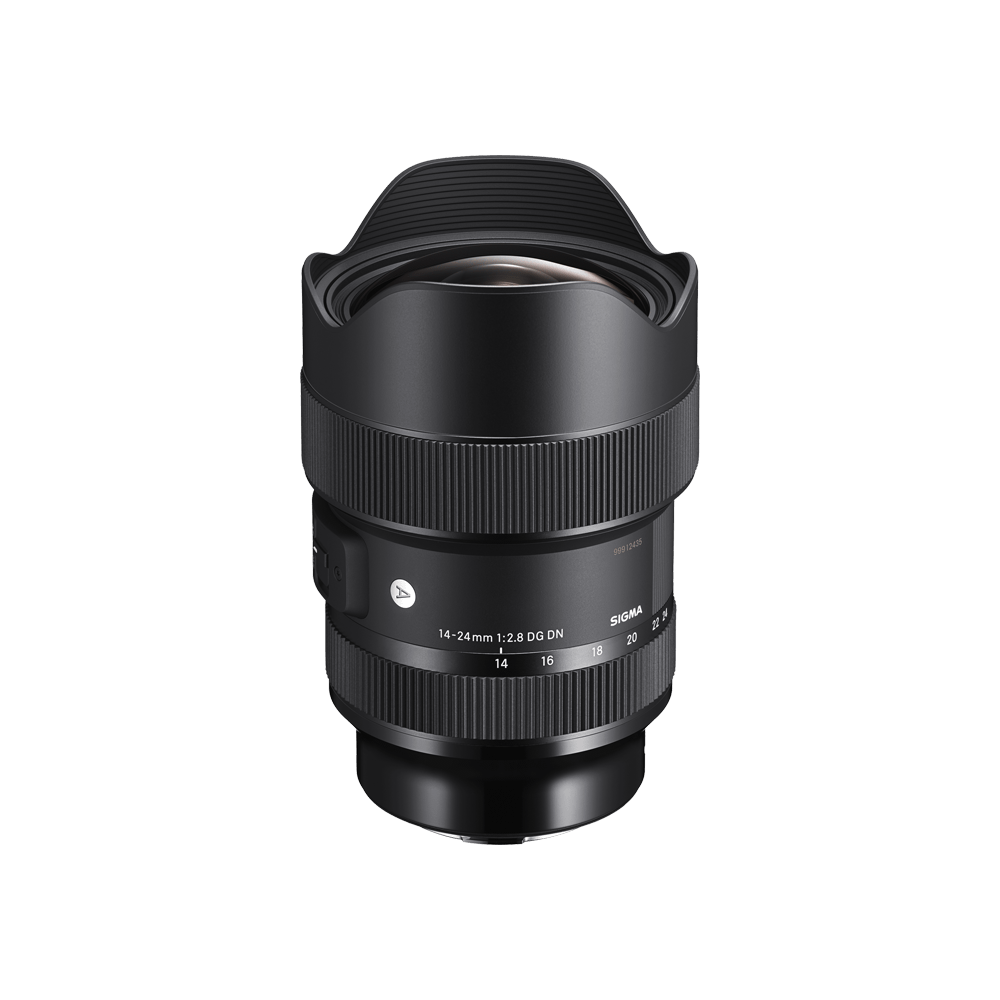

14-24mm F2.8 DG DN
Ultimate large-diameter,
wide-angle zoom lens optimized
for full-frame mirrorless cameras
−“The definitive lens
for astrophotography”
with astonishing resolution.
Many photographers like to use low sensitivity shooting to minimize noise as much as they can. Particularly in the photography of starry skies, bright wide-angle lenses are often selected because they can efficiently collect weak light. The 14-24mm F2.8 DG DN | Art has been developed as the ultimate large-diameter, wide-angle zoom lens by optimizing the standard specifications for photographing starry skies for full-frame mirrorless cameras. The uniform rendering performance and outstanding resolution to the edge of the frame make it the “definitive lens for astrophotography.” By utilizing the characteristics of the short flange focal length, this new-generation large-diameter zoom lens combines both compact body and unprecedented high-resolution image quality.
About Product Name:
Product name includes “DG” when the lens is designed to deliver the ultimate in performance on cameras with full-frame sensors, and “DN” when the lens design is optimized for mirrorless cameras with the short flange focal length.
| Camera Type | Mirroless |
|---|---|
| Corresponding Mount | L-Mount, Sony E-Mount |
| Sensor Format | Full-frame [DG] |
| Lens Construction | 18 elements in 13 groups |
| Angle of View | 114.2 – 84.1° |
| Number of Diaphragm Blades | 11 (rounded diaphragm) |
| Minimum Aperture | F22 |
| Minimum Focusing Distance | 28cm / 11in. |
| Maximum Magnification Ratio | 1:7.3 |
| Filter Size | – |
| Dimensions (Diameter × Length) | L-Mount：φ85.0mm × 131.0mm / φ3.3in. × 5.2in. *The length of a lens is measured from the filter surface to its mount. |
| Weight | L-Mount：795g / 28.0oz. Sony E-mount：795g / 28.0oz. |
| Edition Number | A019 The three-digit code on the surface of the lens is to indicate the year the lens was first released. |
| Supplied Accessories | Case |
| Mount / Product Barcode | L-Mount：00-85126-21369-5 Sony E-mount：00-85126-21365-7 |
| Camera Compatibility | LINK |
| * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation. * L-Mount is a registered trademark of Leica Camera AG. * Although dust and splash resistant structure allows the lens to be used in light rain, it is not the same as being waterproof. |
Newly developed high-performance lens series for full-frame mirrorless cameras
With mirrorless cameras emerging at an accelerated pace, expectations towards lenses suited for high-performance full-frame mirrorless cameras are growing. Unfortunately, many photographers may feel that they have little choices for mirrorless lens systems in terms of performance, size, extensive lineup, and due to the burden of having to use multiple systems. Sigma has thus developed and proposes this new full-frame mirrorless lens series as the optimal solution to this challenge.
Sigma will develop interchangeable lenses with unprecedented specifications and performance by designs that benefit from the short flange focal length feature of mirrorless cameras while retaining the concepts of “Contemporary,” “Art,” and “Sports.” We will announce three models as the first lenses from this series.
igh-resolution image quality developed with exclusive low dispersion glass elements and NPC(Nano Porous Coating)
One FLD glass and five SLD glass elements are appropriately arranged to suppress chromatic aberration to the edge of the frame. Three aspherical lenses, including a large-diameter aspherical lens at the foremost surface, are used to effectively minimize coma flare, etc., thereby achieving mind-blowing resolution.
Sigma’s unique coating technology Nano Porous Coating
The super multi-layer coating is combined with Sigma’s unique coating technology “NPC (Nano Porous Coating)”. The lens has been designed to be less susceptible to strong incident light such as backlight.
“NPC (Nano Porous Coating)” incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.
Substantial functions enable user confidence, even in tough environments
Incorporating a stepping motor enables the high speed, quiet AF drive. Shooting is comfortable even in target AF such as Face/Eye Detection AF and during video shooting. The 1 AFL button which can be assigned with various functions widens the range of operations available on the lens. Furthermore, the lens features a 2 dust and splash resistant structure along with a water- and oil-repellent coating on the frontmost surface of the lens, which further supports shooting in various environments.
*1 Function available on supported cameras only. Available corrections may vary depending on the camera model.
*2 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
Rear filter holder as a standard accessory
The lens comes with a rear filter holder equipped with a fall prevention lock for attaching sheet type rear filters for shooting starry skies.
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
Note:
・Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
・On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’(AUTO).
Rounded diaphragm(11-blade)
The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.
LENS CONSTRUCTION
MTF Chart
DIFFRACTION MFT
DIFFRACTION MFT
GEOMETRICAL MFT
GEOMETRICAL MFT
MTF CHART GUIDE
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.

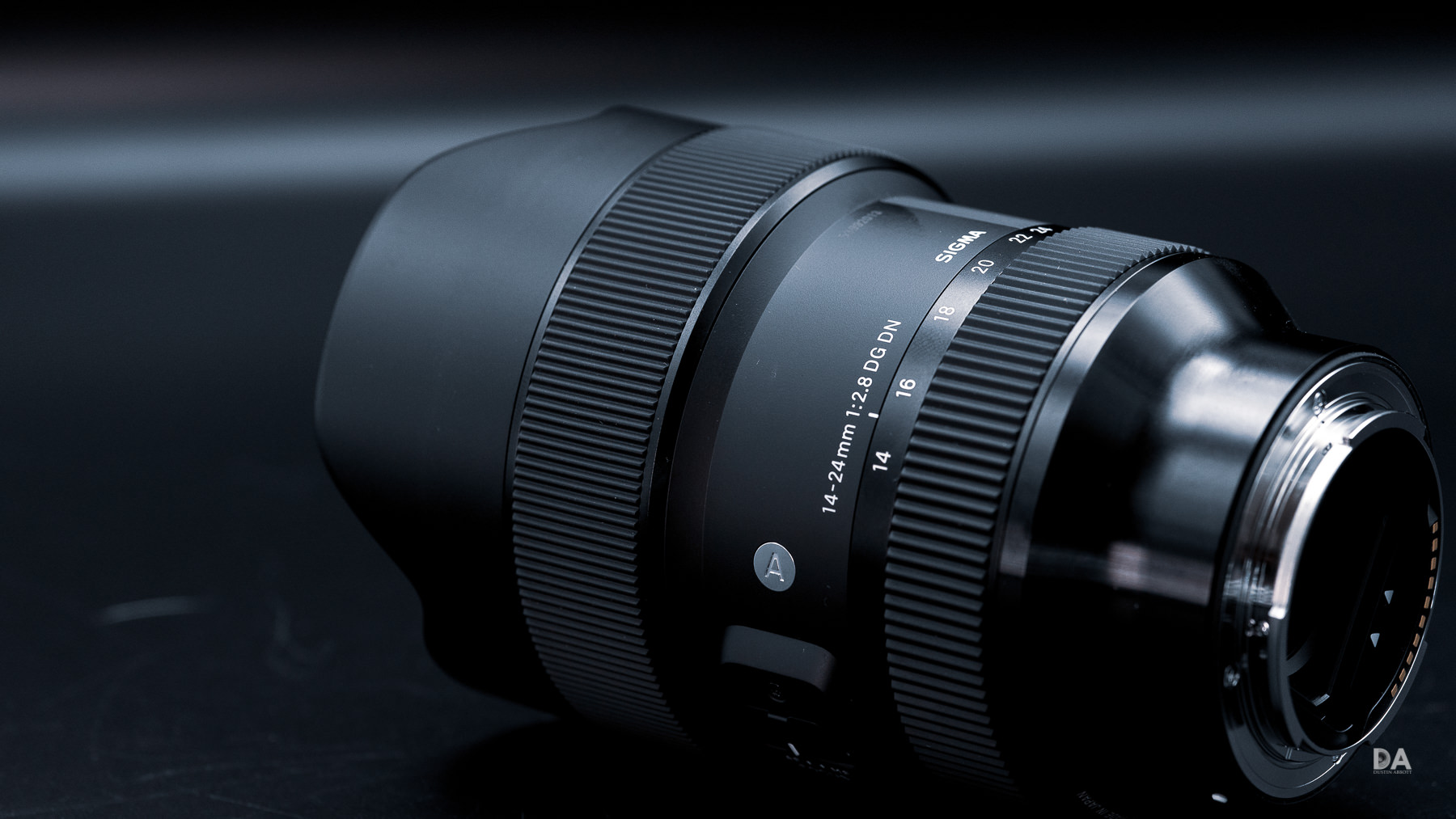

Dust and Splash Resistant Structure
This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.
Water and oil repellent coating
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
Aperture ring
Aperture ring, designed to help users work intuitively
Aperture ring click switch
Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.
Aperture ring lock switch
A ring lock system to prevent from unintended movement of the aperture ring during shooting.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Linear focus / Non-linear focus (for L-Mount only）
A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With “non-linear focus,” the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Dust and Splash Resistant Structure
This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.
Hood with lock
Features a hood with lock to prevent dropping the hood.
Supports DMF and AF+MF
Compatible with AF assist (for Sony E-mount only)
Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)
Designed to minimize flare and ghosting
Every single lens undergoes Sigma’s proprietary MTF measuring system
Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)
Designed to minimize flare and ghosting
Every single lens undergoes Sigma’s proprietary MTF measuring system
13-blade rounded diaphragm
High-precision, durable brass bayonet mount
Mount Conversion Service available
“Made in Aizu, Japan“ craftsmanship
| Camera | SONYα7R III |
|---|---|
| Shutter Speed | 30s |
| Lens F Number | F2.8 |
| ISO | 32000 |
| Focal Length | 15mm |
| Photographer | Shigemi Numazawa |
| Camera | SONY α7R IV |
|---|---|
| Shutter Speed | 30s |
| Lens F Number | F2.8 |
| ISO | 25000 |
| Focal Length | 14mm |
| Photographer | Shigemi Numazawa |
| Camera | SIGMA fp L |
|---|---|
| Shutter Speed | 15s |
| Lens F Number | F16 |
| ISO | 100 |
| Focal Length | 16mm |
| Photographer | Yang Su Tie |
