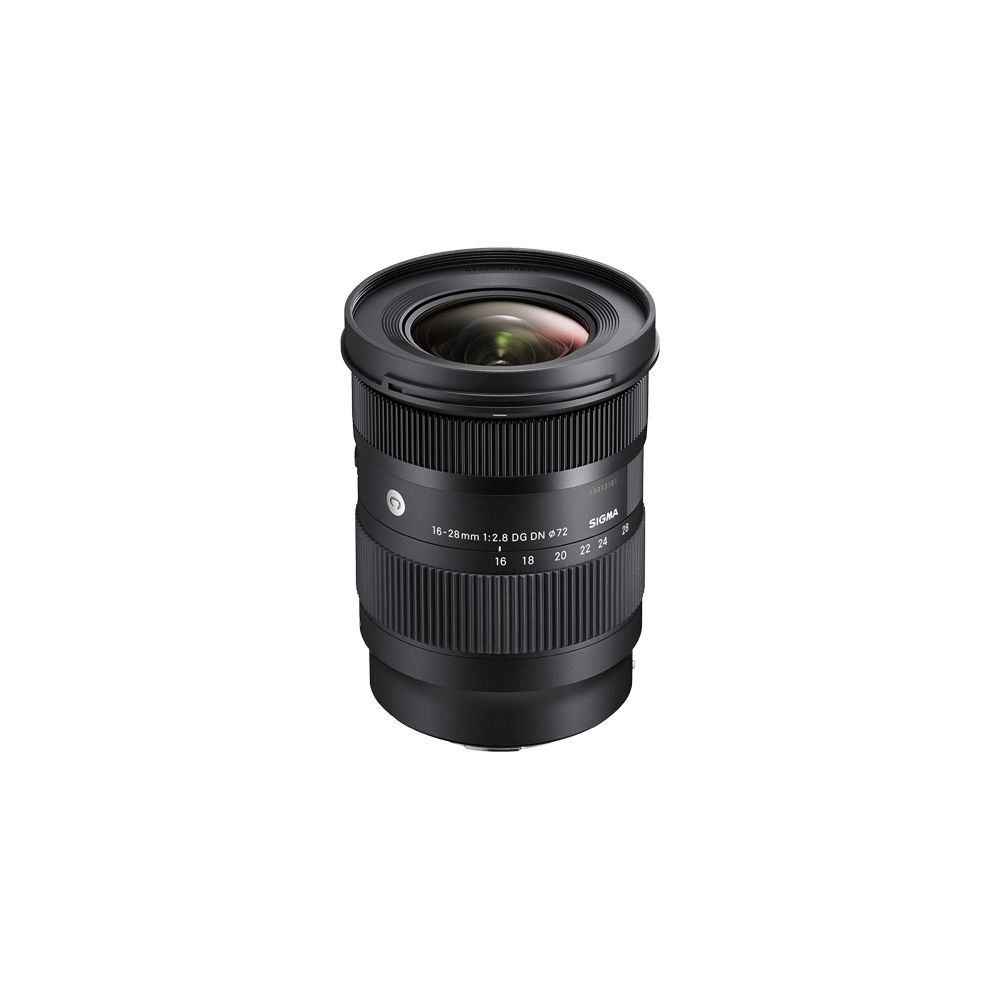

16–28mm F2.8 DG DN

CONTEMPORARY

16–28mm F2.8 DG DN

Available Mounts

L-Mount
Sony E-Mount

Effortless freedom.

A high performance compact ultra-wide zoom
with a constant F2.8 aperture.

The full-frame Sigma 16-28mm F2.8 DG DN | Contemporary combines exceptional optical quality, a bright F2.8 constant aperture and a robust and lightweight body, opening up new possibilities for L-Mount and Sony E-mount shooters who need professional results in a compact package.

With its excellent field curvature correction, the 16-28mm F2.8 DG DN | Contemporary is able to achieve exceptional edge-to-edge sharpness, which is essential for most wide-angle applications. It boasts five FLD elements and four aspherical lens elements to ensure optimal image quality with minimal aberrations. The lens has an inner zoom mechanism that keeps overall length consistent throughout the entire zoom range, helping it feel balanced in the hand. The inner zoom also means the lens’ center of gravity stays fairly constant, so it’s perfect for gimbal use. A front filter thread allows filters to be attached more easily.

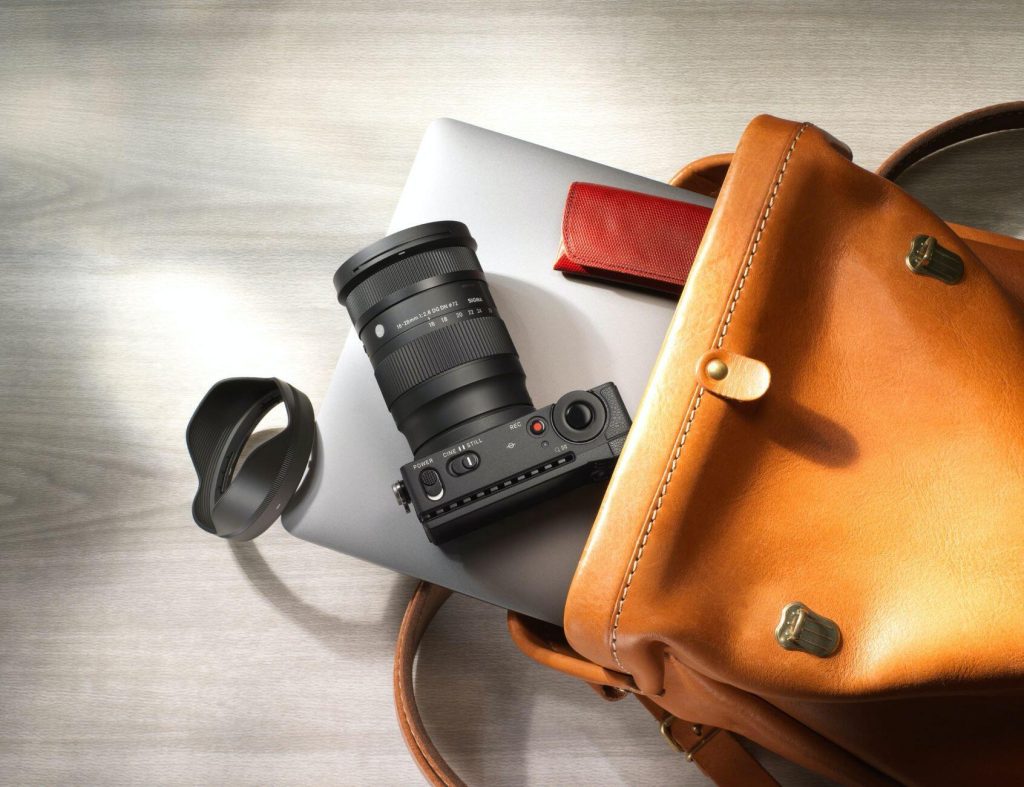

The lens boasts an exceptionally compact form-factor, weighing in at just 450g and measuring just 100.6mm in length*, which makes it a highly practical optic that is portable enough for everyday shooting. It’s especially appealing for landscape, wedding and travel photographers who need to carry their kit for long periods.

Lightweight, versatile and extremely capable, Sigma’s 16-28mm F2.8 DG DN | Contemporary offers photographers effortless freedom at the ultra-wide end.

* size and weight measurements given for L-Mount version

Camera Type	Mirroless
Corresponding Mount	L-Mount, Sony E-Mount
Sensor Format	Full-frame [DG]
Lens Construction	11 groups, 16 elements (5 FLD and 4 aspherical lens elements)
Angle of View	107.0°-75.4°
Number of Diaphragm Blades	09 (rounded diaphragm)
Minimum Aperture	F22
Minimum Focusing Distance	25cm / 9.9in.
Maximum Magnification Ratio	1:5.6
Filter Size	φ72mm
Dimensions (Diameter × Length)	L-Mount：φ77.2mm × 100.6mm / φ3.0in. × 4.0in. Sony E-mount：φ77.2mm × 102.6mm / φ3.0in. × 4.0in. *The length of a lens is measured from the filter surface to its mount.
Weight	L-Mount：450g / 15.9oz. Sony E-mount：450g / 15.9oz.
Edition Number	A022 The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

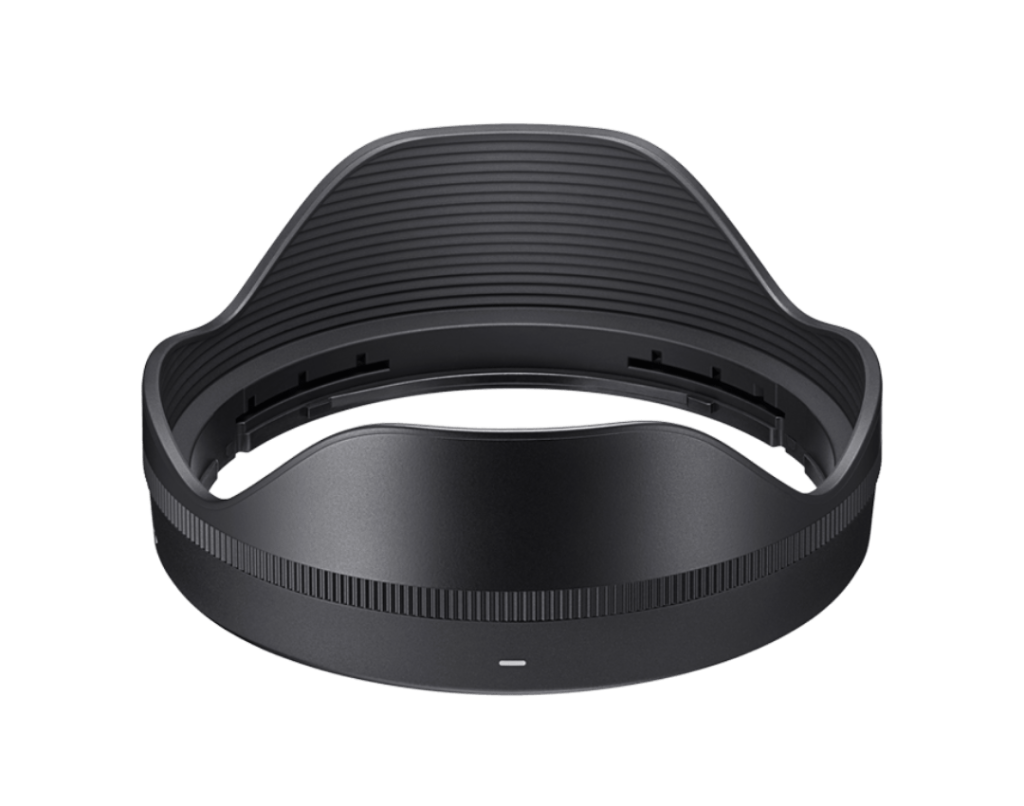

Supplied Accessories	LENS HOOD LH756-01 FRONT CAP LCF-72 III REAR CAP LCR II
Mount / Product Barcode	L-Mount：00-85126-20669-7 Sony E-mount：00-85126-20665-9
Camera Compatibility	LINK
	* L-Mount is a registered trademark of Leica Camera AG. * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

Newly developed high-performance lens series for full-frame mirrorless cameras

With mirrorless cameras emerging at an accelerated pace, expectations towards lenses suited for high-performance full-frame mirrorless cameras are growing. Unfortunately, many photographers may feel that they have little choices for mirrorless lens systems in terms of performance, size, extensive lineup, and due to the burden of having to use multiple systems. Sigma has thus developed and proposes this new full-frame mirrorless lens series as the optimal solution to this challenge.
Sigma will develop interchangeable lenses with unprecedented specifications and performance by designs that benefit from the short flange focal length feature of mirrorless cameras while retaining the concepts of “Contemporary,” “Art,” and “Sports.” We will announce three models as the first lenses from this series.

High-resolution image quality developed with exclusive low dispersion glass elements and NPC(Nano Porous Coating)

One FLD glass and five SLD glass elements are appropriately arranged to suppress chromatic aberration to the edge of the frame. Three aspherical lenses, including a large-diameter aspherical lens at the foremost surface, are used to effectively minimize coma flare, etc., thereby achieving mind-blowing resolution.

Sigma’s unique coating technology Nano Porous Coating

The super multi-layer coating is combined with Sigma’s unique coating technology “NPC (Nano Porous Coating)”. The lens has been designed to be less susceptible to strong incident light such as backlight.
“NPC (Nano Porous Coating)” incorporates porous silica as the coating material. The porous silica layer has nano-sized holes with air inside. Having holes of this size enables a large reduction in the refractive index, allowing the reflectance to be lowered more than conventional anti-reflective coatings. As a result, reflected light causing flares and ghosting is sharply reduced, achieving clear image quality.

Substantial functions enable user confidence, even in tough environments

Incorporating a stepping motor enables the high speed, quiet AF drive. Shooting is comfortable even in target AF such as Face/Eye Detection AF and during video shooting. The 1 AFL button which can be assigned with various functions widens the range of operations available on the lens. Furthermore, the lens features a 2 dust and splash resistant structure along with a water- and oil-repellent coating on the frontmost surface of the lens, which further supports shooting in various environments.

*1 Function available on supported cameras only. Available corrections may vary depending on the camera model.
*2 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

Rear filter holder as a standard accessory

The lens comes with a rear filter holder equipped with a fall prevention lock for attaching sheet type rear filters for shooting starry skies.

Designed to minimize flare and ghosting

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

Note:
・Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
・On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’(AUTO).

Rounded diaphragm(11-blade)

The 11-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.

LENS CONSTRUCTION

MTF Chart

DIFFRACTION MFT

GEOMETRICAL MFT

MTF CHART GUIDE

The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.

*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

HLA (High-response Linear Actuator)

HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.

Compatible with Lens Aberration Correction

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).

Super Multi-Layer Coating

Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Aperture ring

Aperture ring, designed to help users work intuitively

Aperture ring click switch

Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.

Aperture ring lock switch

A ring lock system to prevent from unintended movement of the aperture ring during shooting.

AFL button

the AFL button can be assigned with various functions widens the range of operations available on the lens.

Linear focus / Non-linear focus (for L-Mount only）

A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With “non-linear focus,” the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

Hood with lock

Features a hood with lock to prevent dropping the hood.

Supports DMF and AF+MF

Compatible with AF assist (for Sony E-mount only)

Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

Designed to minimize flare and ghosting

Every single lens undergoes Sigma’s proprietary MTF measuring system

Compatible with Sigma USB DOCK UD-11 (sold separately / for L-Mount only)

Designed to minimize flare and ghosting

Every single lens undergoes Sigma’s proprietary MTF measuring system

13-blade rounded diaphragm

High-precision, durable brass bayonet mount
