SPORTS

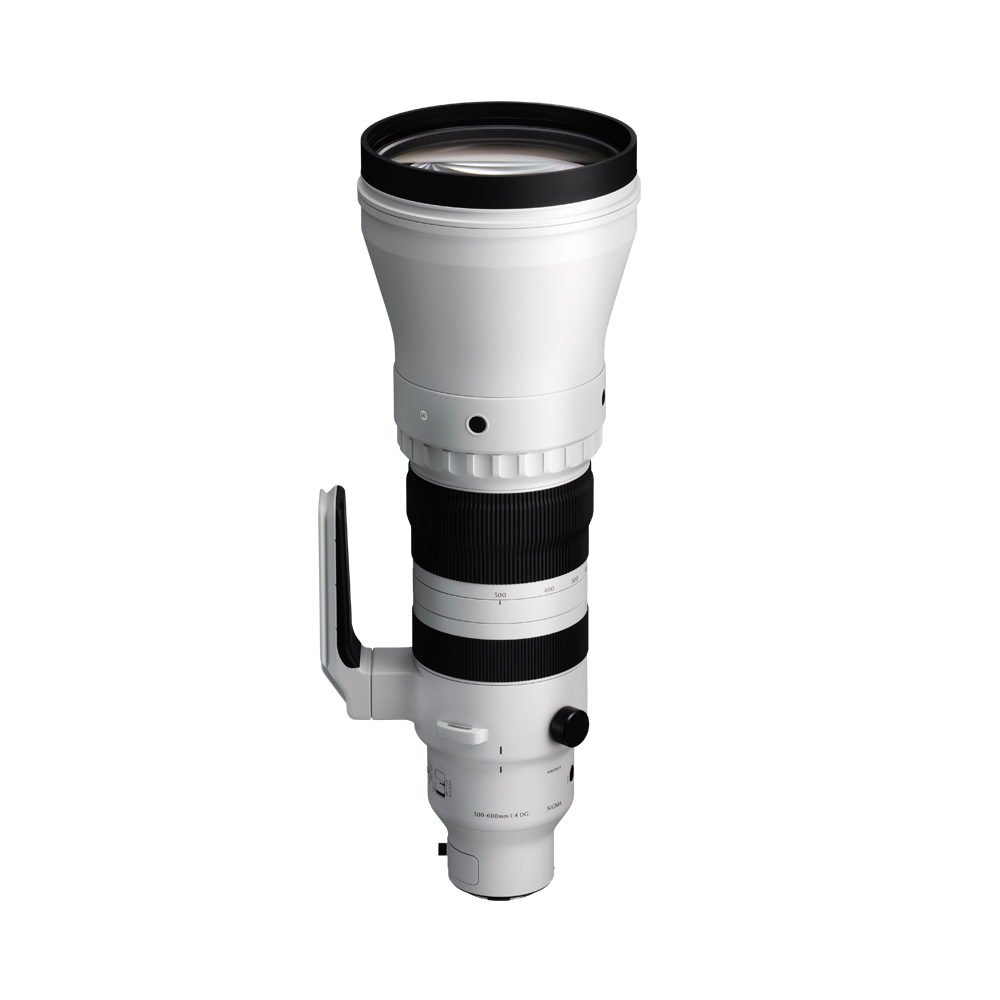

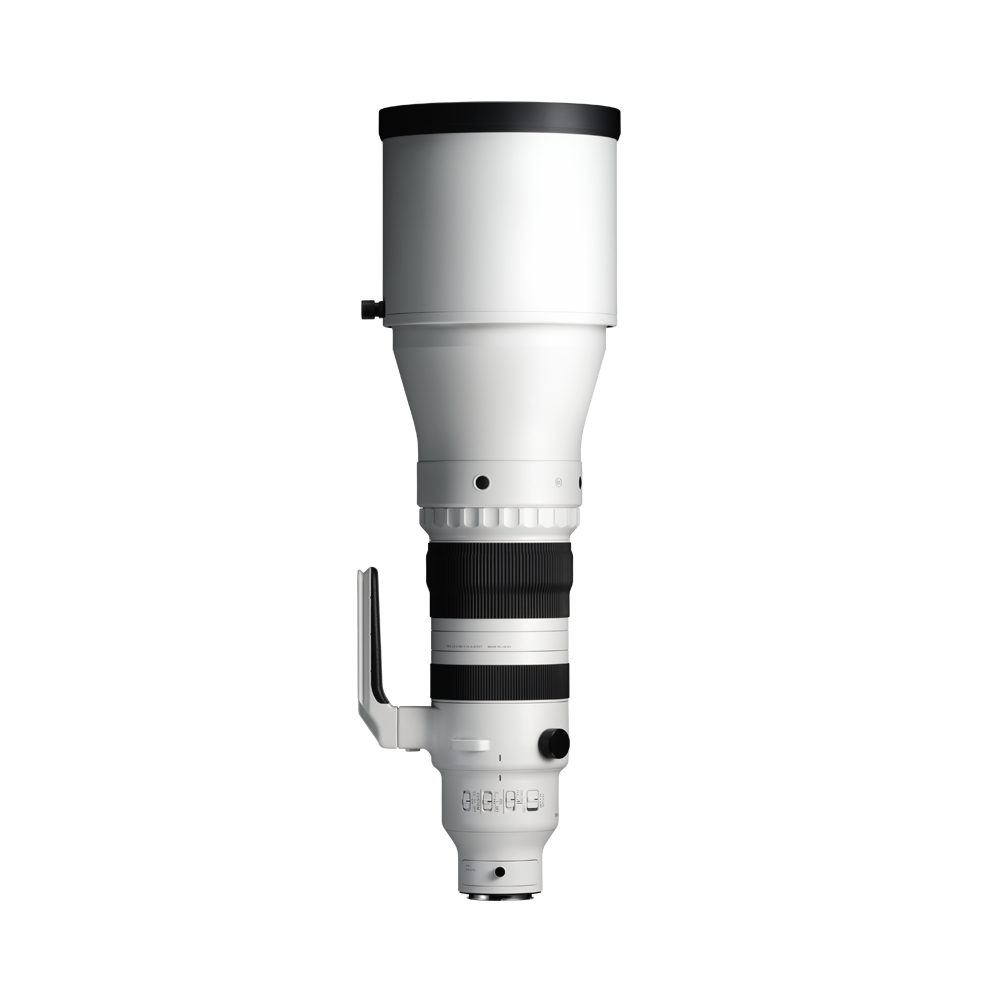

300–600mm F4 DG OS
SPORTS
300–600mm F4 DG OS
Available Mounts
L-Mount
Sony E-Mount
Sony E-Mount
- Ultra-telephoto zoom lens with the optical performance and brightness of a prime lens
- High-speed autofocus and powerful optical stabilization to never miss a decisive moment
- Exceptional quality, functionality and features of the flagship of the Sigma’s Sports line
- Extremely high optical performance
- Powerful Optical Stabilization function driven by the OS2 algorithm
- Thermal insulation paint for perfect lens performance
- New function ring adds extended functionality

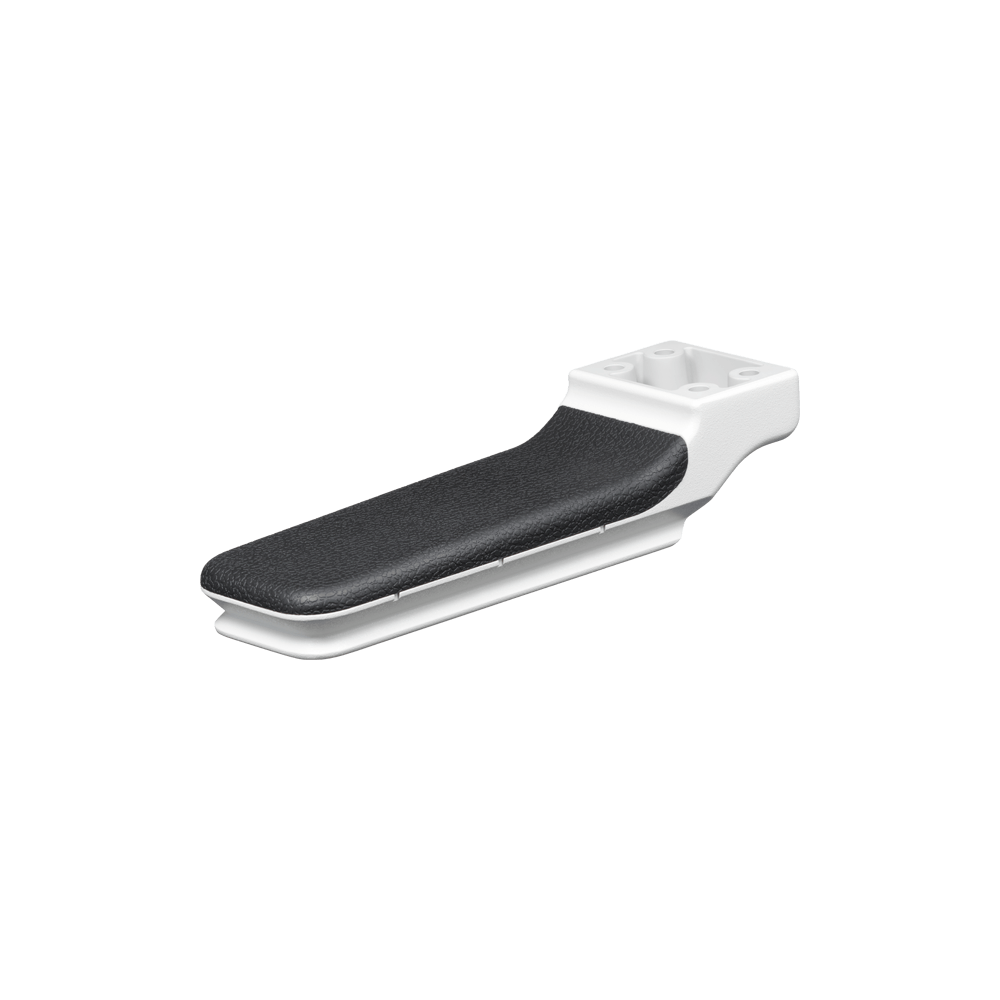

- Durable and easy-to-handle tripod socket

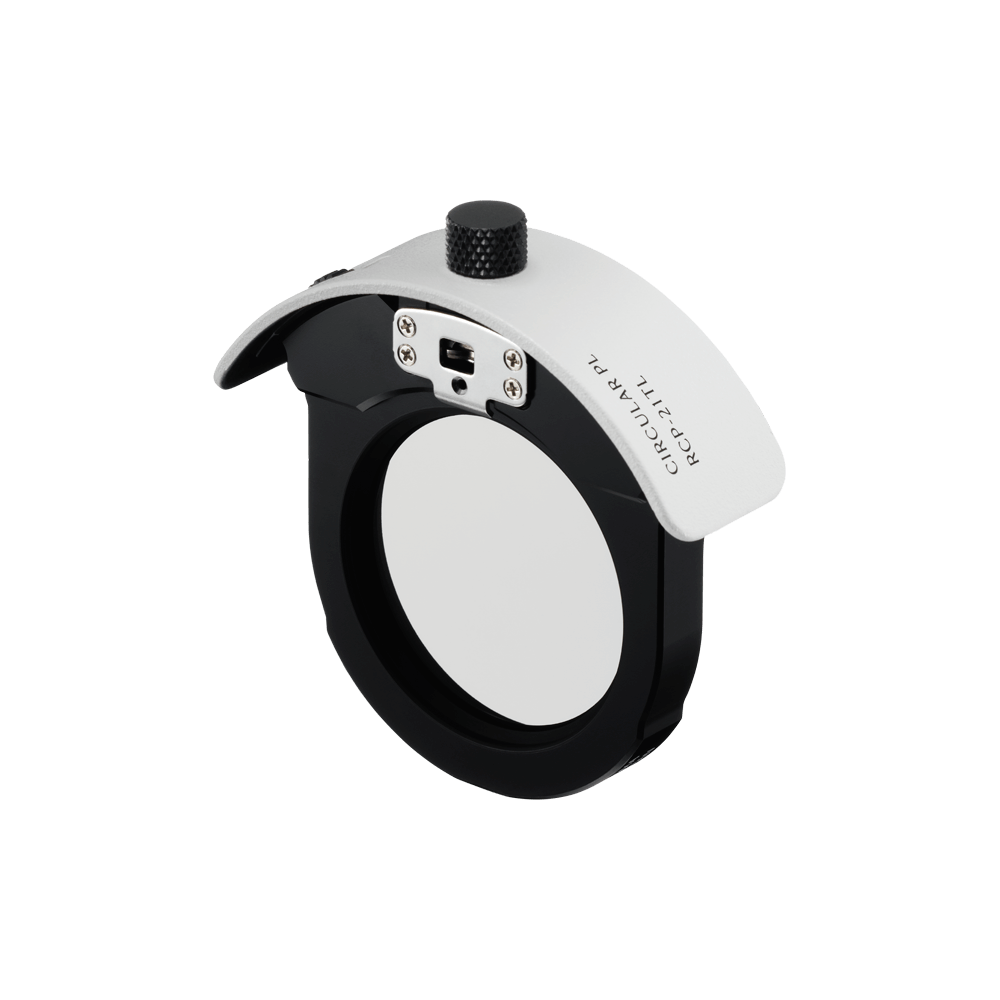

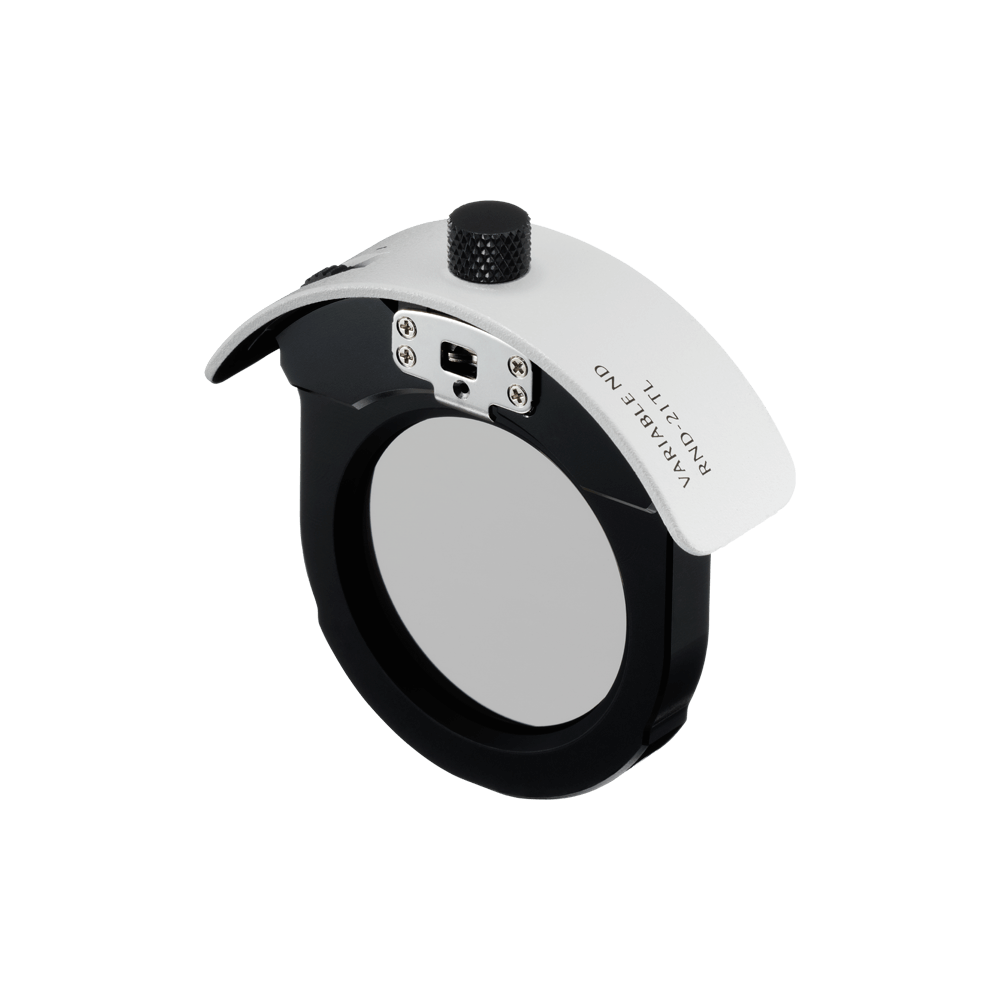

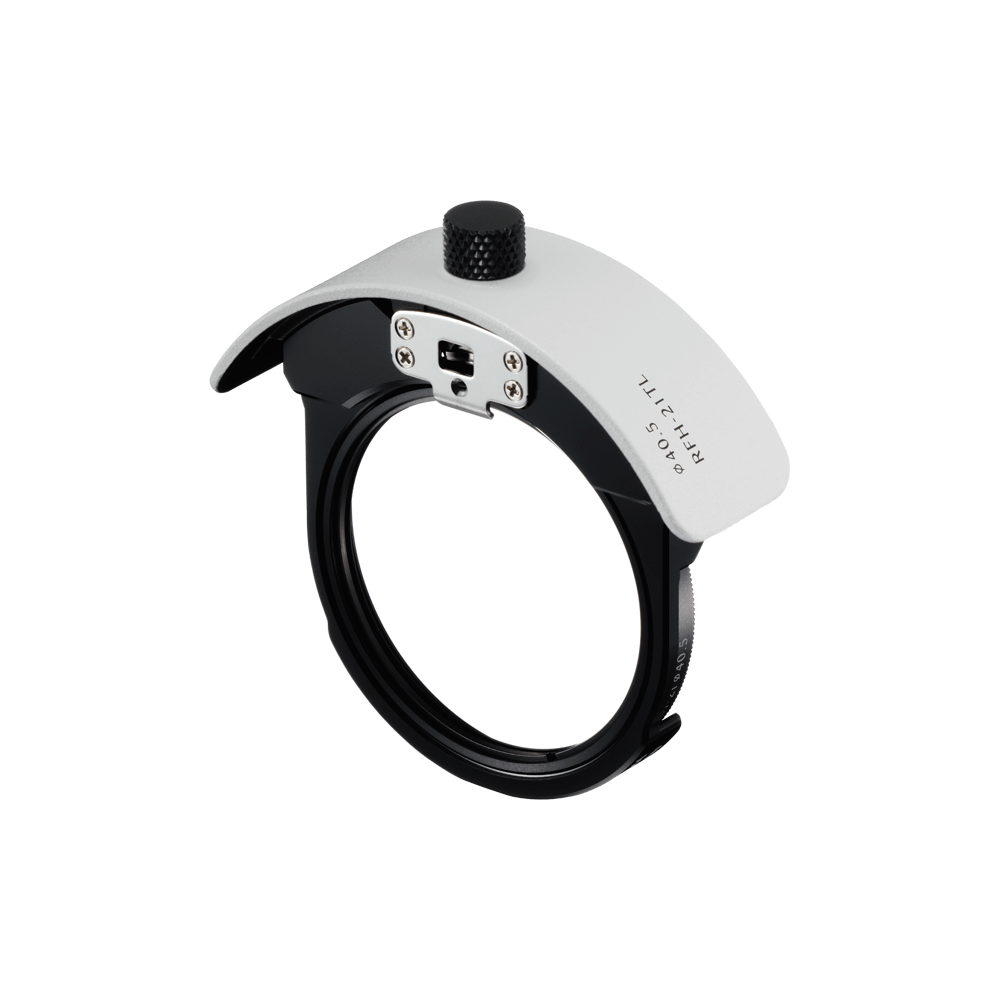

- Equipped with a drop-in filter holder
- Weatherability of Sigma’s Sports line specifications
- Various functions to support shooting
Superior optical performance and agility for professionals:
The innovative Sigma 300-600mm F4 DG OS | Sports combines the power of a prime lens with the freedom to zoom
The Sigma 300-600mm F4 DG OS | Sports is a revolutionary large-aperture ultra-telephoto zoom lens that delivers all the convenience and versatility of a zoom lens with the superior optical performance of an ultra-telephoto prime lens. With the Sigma 300-600mm F4 DG OS | Sports, photographers can move freely between focal lengths of 300mm and 600mm without changing lenses. The fast and precise AF performance of its High-response Linear Actuator (HLA) and 5.5 stops* of optical stabilization at 600mm make the Sigma 300-600mm F4 DG OS | Sports a powerful choice for the challenges of sports, action and wildlife photography, where situations change quickly and the opportunity for the perfect photo lasts only a few moments. Featuring a magnesium alloy body, thermal insulation paint and a number of additional features such as the newly added function ring, the Sigma 300-600mm F4 DG OS | Sports has been designed to support professionals achieve their best shots.
* Based on CIPA guidelines. (Measured at a focal length of 600mm with a 35mm full-frame camera)
| Camera Type | Mirroless |
|---|---|
| Corresponding Mount | L-Mount, Sony E-Mount |
| Sensor Format | Full-frame [DG] |
| Lens Construction | 28 elements in 21 groups (6 FLD, 1 SLD) |
| Angle of View | 8.2-4.1° |
| Number of Diaphragm Blades | 13 (rounded diaphragm) |
| Minimum Aperture | F22 |
| Minimum Focusing Distance | 280(W)-450(T)cm / 110.3(W)-177.2(T)in. |
| Maximum Magnification Ratio | 1: 6 at f=470mm |
| Filter Size | φ40.5mm (Rear) |
| Dimensions (Diameter × Length) | L-Mount：φ167.0mm x 467.9mm / φ6.6in. x 18.4in. |
| Weight | L-Mount：3,985g / 140.6oz. Sony E-mount：3,970g / 140.0oz. |
| Edition Number | S025 The three-digit code on the surface of the lens is to indicate the year the lens was first released. |

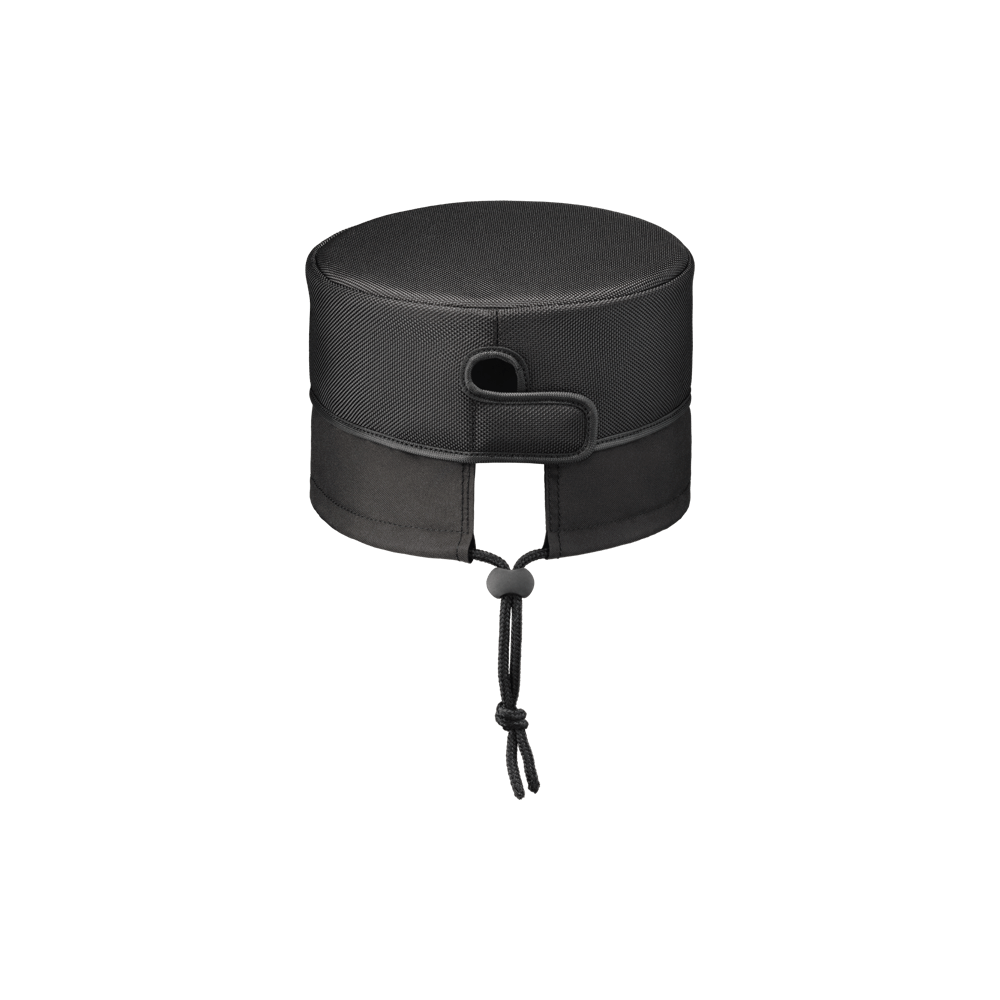

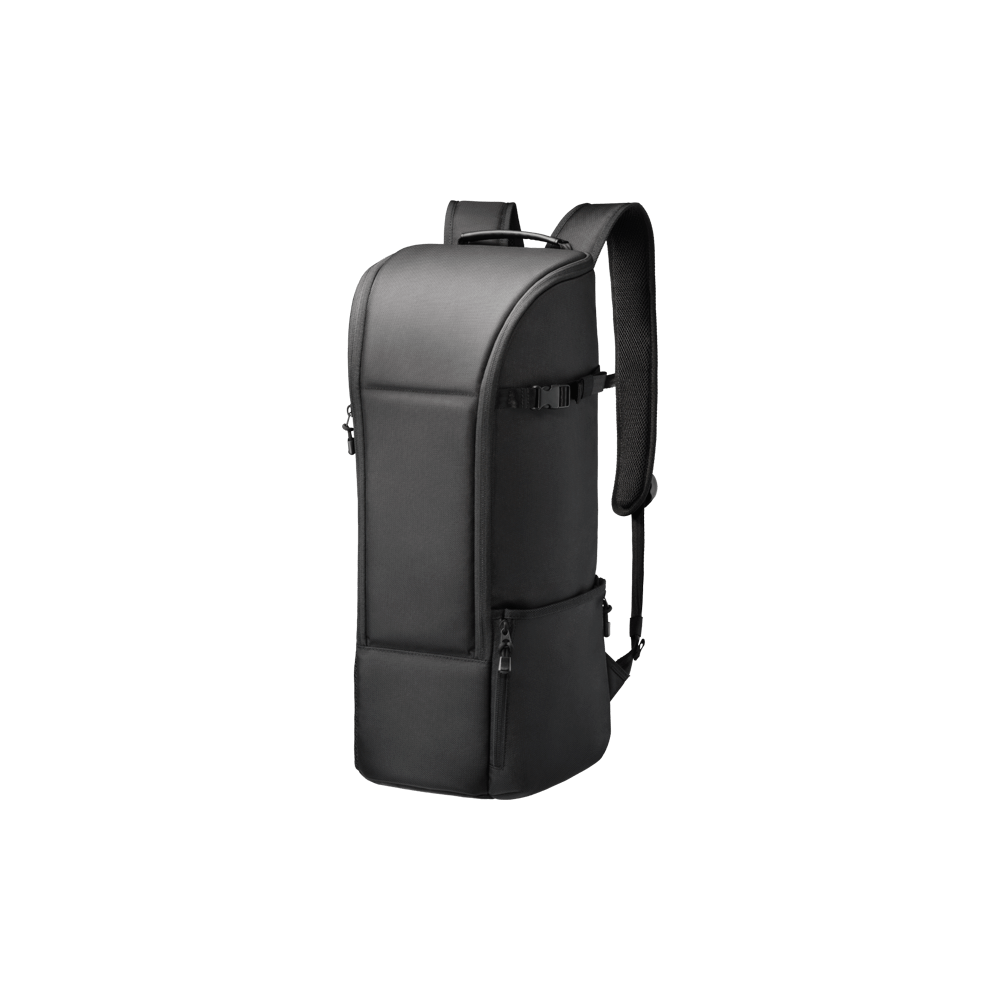

| Supplied Accessories | CASE |
| Mount / Product Barcode | L-Mount：00-85126-59869-3 Sony E-mount：00-85126-59865-5 |
| Camera Compatibility | LINK |
* This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation. |
Exceptional versatility in the ultra-telephoto range
The Sigma 300-600mm F4 DG OS | Sports extends the capabilities of a 600mm F4 prime lens with the freedom to zoom out all the way to 300mm without compromising optical performance. Its inner zoom mechanism minimizes center of gravity fluctuations throughout the entire zoom range, making it a versatile and easy-to-use tool for an unprecedented range of shooting situations.
Extremely high optical performance
The Sigma 300-600mm F4 DG OS | Sports features 28 lens elements in 21 groups, including 6 FLD and 1 SLD glass elements, anomalous dispersion glass, and high refractive index glass. Its optical design provides excellent correction of various optical aberrations, such as chromatic aberration, throughout the entire zoom range. Although a zoom lens, the Sigma 300-600mm F4 DG OS | Sports delivers the unparalleled optical performance of a prime lens.
HLA-driven high-speed AF
Despite its large aperture of F4, the Sigma 300-600mm F4 DG OS | Sports features a lightweight focus lens group thanks to the use of a high-thrust HLA (High-response Linear Actuator) motor, optimized optical power arrangement and state-of-the-art glass materials. The result is a high-speed autofocus functionality with outstanding accuracy.
Powerful Optical Stabilization function driven by the OS2 algorithm
The Sigma 300-600mm F4 DG OS | Sports delivers exceptional optical stabilization of 5.5 stops* at 600mm. Powered by Sigma’s sophisticated OS2 algorithm and featuring a drive unit with a specially designed actuator and high-precision sensor, this lens effortlessly meets the demands of a large-aperture ultra-telephoto.
Additionally, photographers have the choice between two OS modes: Mode 1 is suitable for most still photography and video situations, while Mode 2 was specially designed for panning shots. Driven by Sigma’s Intelligent OS algorithm, this mode stabilizes the image during horizontal, vertical, or diagonal movements, regardless of the camera’s orientation, enabling photographers to capture moving subjects with professional precision.
* Based on CIPA guidelines. (Measured at a focal length of 600mm with a 35mm full-frame camera)
Combines high robustness and mobility
The lens barrel is made of magnesium alloy for the main parts and the hood is made of carbon, achieving both high robustness and light weight. In addition, the optical design with the center of gravity toward the camera greatly improves the weight balance, which tends to be front-heavy.
Thermal insulation paint for perfect lens performance
The exterior of the lens body is coated with a thermal insulation paint that effectively suppresses heat absorption from sunlight. This prevents the lens from heating up, even during long outdoor shoots in sunny weather, such as nature or motorsports photography.

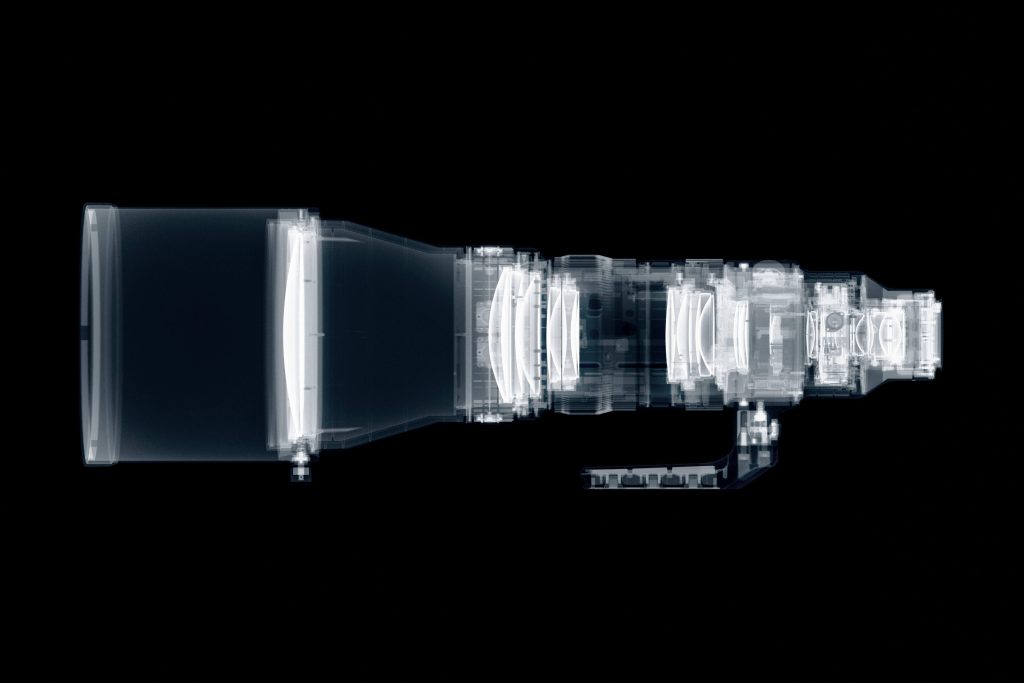

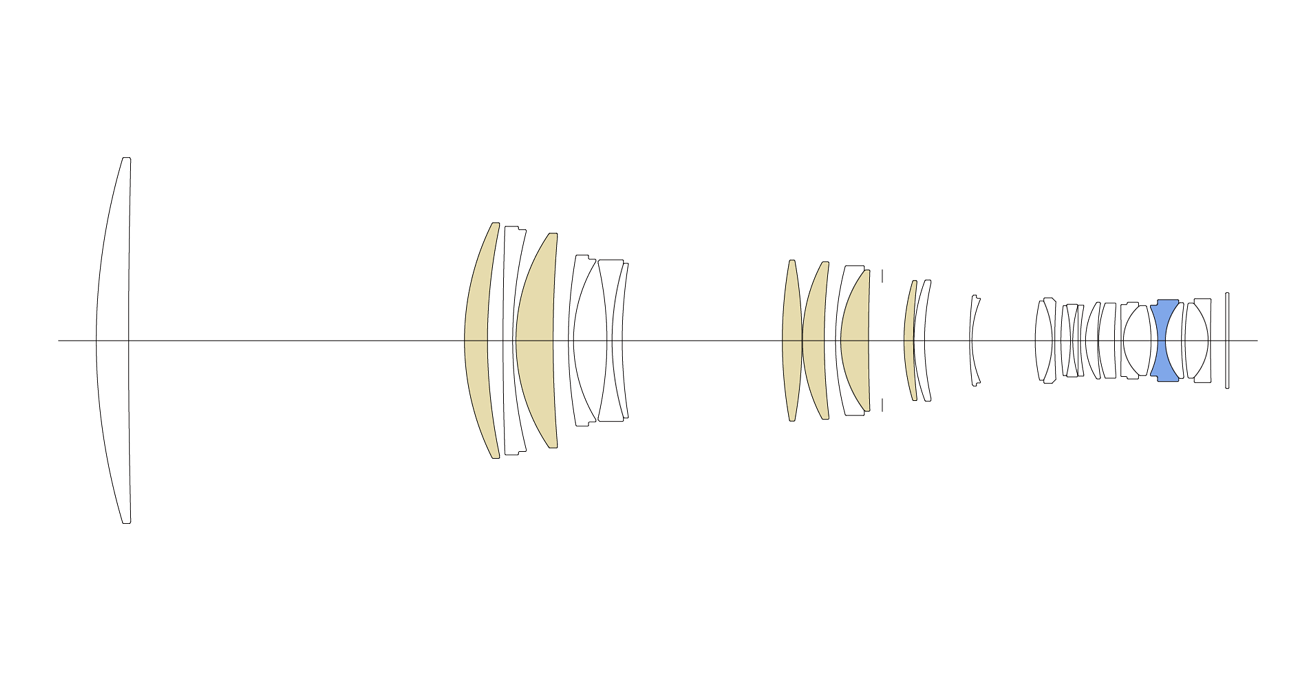

LENS CONSTRUCTION
MTF Chart
DIFFRACTION MFT
DIFFRACTION MFT
GEOMETRICAL MFT
GEOMETRICAL MFT
Diffraction MTF (TC-1411)
Diffraction MTF (TC-1411)
Geometrical MTF (TC-1411)
Geometrical MTF (TC-1411)
Diffraction MTF (TC-2011)
Diffraction MTF (TC-2011)
Geometrical MTF (TC-2011)
Geometrical MTF (TC-2011)
MTF CHART GUIDE
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Water and oil repellent coating
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
OS (Optical Stabilizer) function
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
