Packed with all the technology Sigma has to offer
70-200mm F2.8, worthy of the flagship
The large F2.8 aperture provides stable and high descriptive performance at all zoom and focus ranges. The high-speed AF with a dual HLA (High-response Linear Actuator) based on a floating focus structure, and the Optical Stabilizer function with the OS2 algorithm with up to 7.5 stops of correction effect*, ensure that users can take the right shot when there is no room for error. The highly mobile lens with high durability, rigidity, and texture is equipped with a wealth of functions to assist comfortable shooting, including an inner zoom mechanism for easy handling, as well as an aperture ring and switches with various customization functions. The flagship Sigma 70-200mm F2.8 DG DN OS | Sports, combined with the best of Sigma’s latest technologies to meet the high-level demands of professionals, has finally arrived.
＊Based on CIPA guidelines (Measured at 70mm and 200mm with a 35mm full-frame image sensor)
| Camera Type | Mirroless |
|---|---|
| Corresponding Mount | L-Mount, Sony E-Mount |
| Sensor Format | Full-frame [DG] |
| Lens Construction | 20 elements in 15 groups (6 FLD, 2 SLD, 3 aspherical elements) |
| Angle of View | 34.3° -12.3° |
| Number of Diaphragm Blades | 11 (rounded diaphragm) |
| Minimum Aperture | F22 |
| Minimum Focusing Distance | 65 (W) – 100 (T) cm |
| Maximum Magnification Ratio | 1:5.2 (at focal length 200mm) |
| Filter Size | φ77mm |
| Dimensions (Diameter × Length) | L-Mount：φ90.6mm × 205.0mm / φ3.6in. × 8.1in. |
| Weight | L-Mount：1,345g / 47.4oz Sony E-mount：1,335g / 47.1oz. |
| Edition Number | S023 The three-digit code on the surface of the lens is to indicate the year the lens was first released. |
| Supplied Accessories | Case |
| Mount / Product Barcode | L-Mount：00-85126-59169-4 Sony E-mount：00-85126-59165-6 |
| Camera Compatibility | LINK |
* The appearance and specifications of the product are subject to change. |
High-speed AF and optical stabilizer function that maximize superior optical performance

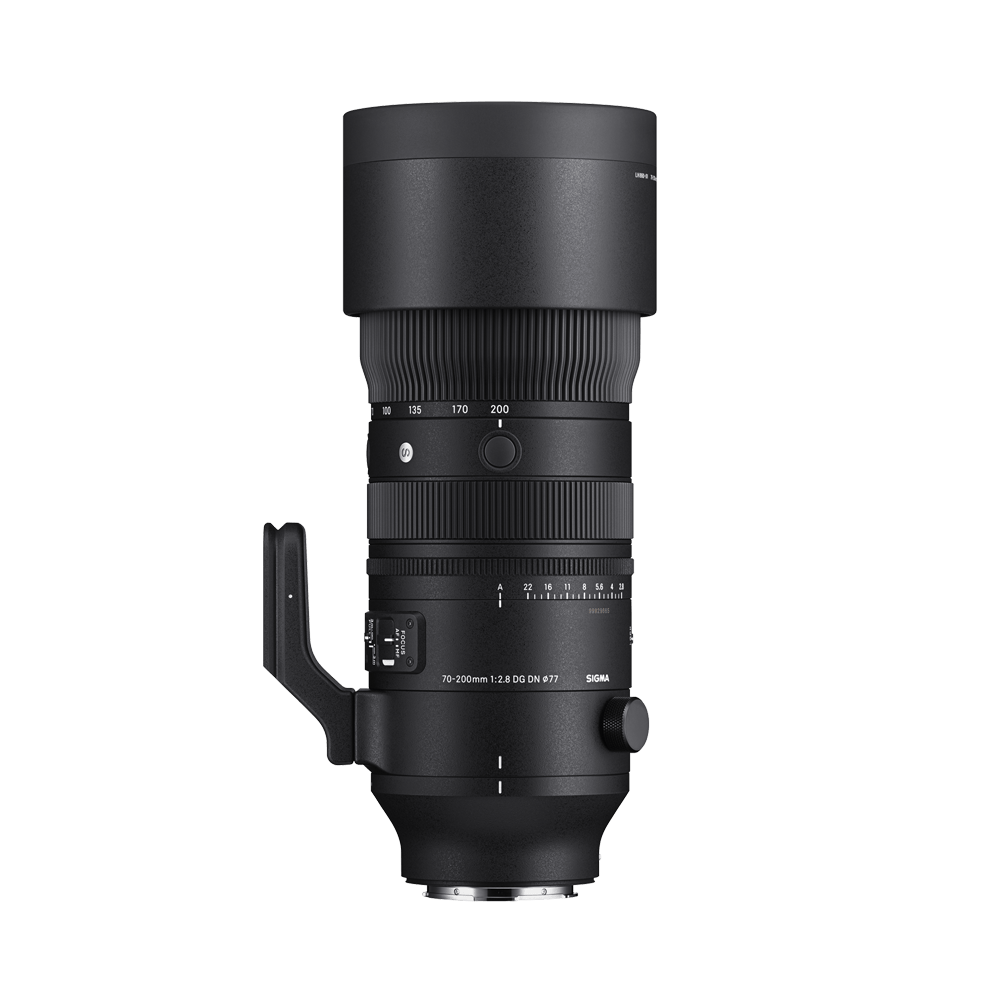

The Sigma 70-200mm F2.8 DG DN OS | Sports, developed with professional use in mind, offers not only high optical performance, but also high-speed AF with a dual HLA (High-response Linear Actuator) and an optical stabilizer function with up to 7.5 stops. The Sports line lenses offer high optical performance, and all functions are based on state-of-the-art technology.
High descriptive performance at all zoom and focus ranges
The latest optical design, which employs luxurious glass materials including 6 FLD and 2 SLD elements of special low-dispersion glass, delivers high resolving power throughout the entire zoom range. Three aspherical lenses are used, as they are now indispensable for superior optical performance and streamlined lens construction. The exceptionally high precision of the aspherical lenses, which take advantage of the technical capabilities of Sigma’s only production facility, the Aizu factory, further improves optical performance. The incorporated floating focus is advantageous in improving short-range performance, ensuring a stable, high-level image quality throughout the entire range from the minimum focusing distance to infinity.
High-speed AF with a dual HLA
The Sigma 70-200mm F2.8 DG DN OS | Sports with floating focus has a structure in which the two focus groups move in opposite directions, thereby reducing the amount of focus lens movement by about half. In addition, the use of an HLA (High-response Linear Actuator) motor in each of the two focus groups enables high-speed autofocusing. In addition to being fast and accurate, the lens also employs a control program that is designed to be quiet, so users can shoot movies comfortably without worrying about noise.
OS2 algorithm in optical stabilizer function
The latest OS2 optical stabilization algorithm provides an extremely high image stabilization effect of 7.5 stops at the wide end and 5.5 stops at the telephoto end*. The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, and Mode 2 is ideal for panning shots of motorsports and other sports. In Mode 2, Sigma’s Intelligent OS, an algorithm specially designed for panning shots, enables effective image stabilization even when the camera is moved vertically or diagonally, irrespective of the horizontal and vertical orientation. This ensures that the subject’s movement can be captured without losing the panning shot effect.
＊Based on CIPA guidelines (Measured at 70mm and 200mm with a 35mm full-frame image sensor)
Designed to minimize focus breathing
The lens has been designed to suppress focus breathing. The change in angle of view due to focus shift is minimized, creating a natural-looking focus shift when recording video.
Designed to minimize flare and ghosting
Flare and ghosting, which reduce image quality, are addressed under all conditions of incident light based on the most advanced simulation technology. High backlight resistance enables clear and sharp images under any lighting conditions.
LENS CONSTRUCTION
MTF Chart
DIFFRACTION MFT
DIFFRACTION MFT
GEOMETRICAL MFT
GEOMETRICAL MFT
Diffraction MTF (TC-1411)
Diffraction MTF (TC-1411)
Geometrical MTF (TC-1411)
Geometrical MTF (TC-1411)
Diffraction MTF (TC-2011)
Diffraction MTF (TC-2011)
Geometrical MTF (TC-2011)
Geometrical MTF (TC-2011)
MTF CHART GUIDE
The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.
*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Sigma’s original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
HLA (High-response Linear Actuator)
HLA is Sigma’s proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Super Multi-Layer Coating
Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
AFL button
the AFL button can be assigned with various functions widens the range of operations available on the lens.
Focus Limiter
Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
| Camera | Sony α7R IV |
|---|---|
| Shutter Speed | 1/1600s |
| Lens F Number | F2.8 |
| ISO | 200 |
| Focal Length | 200mm |
| Photographer | Aya Iwasaki |
| Camera | LEICA SL2-S |
|---|---|
| Shutter Speed | 1/250s |
| Lens F Number | F3.5 |
| ISO | 100 |
| Focal Length | 79mm |
| Photographer | Jim Koepnick |
| Camera | Sony α1 |
|---|---|
| Shutter Speed | 1/2500s |
| Lens F Number | F8 |
| ISO | 100 |
| Focal Length | 200mm |
| Photographer | Takafumi Kojyo |
