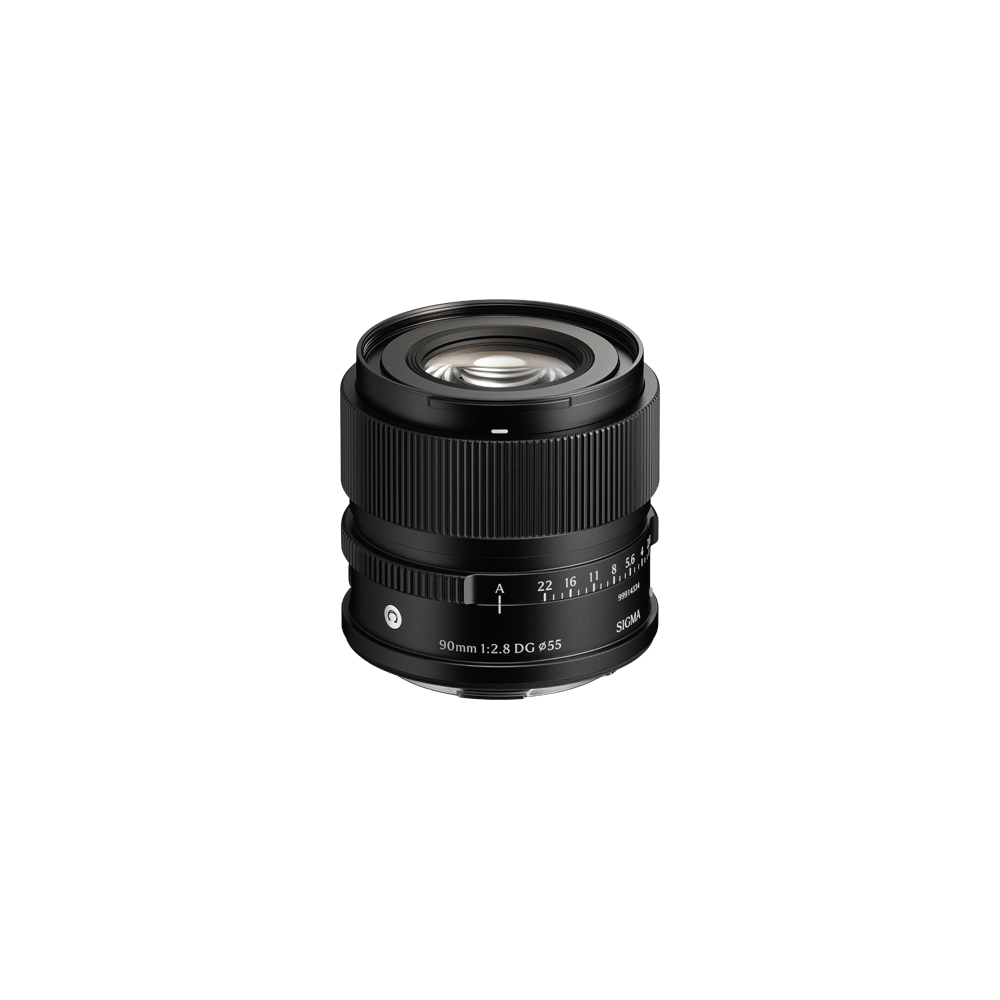

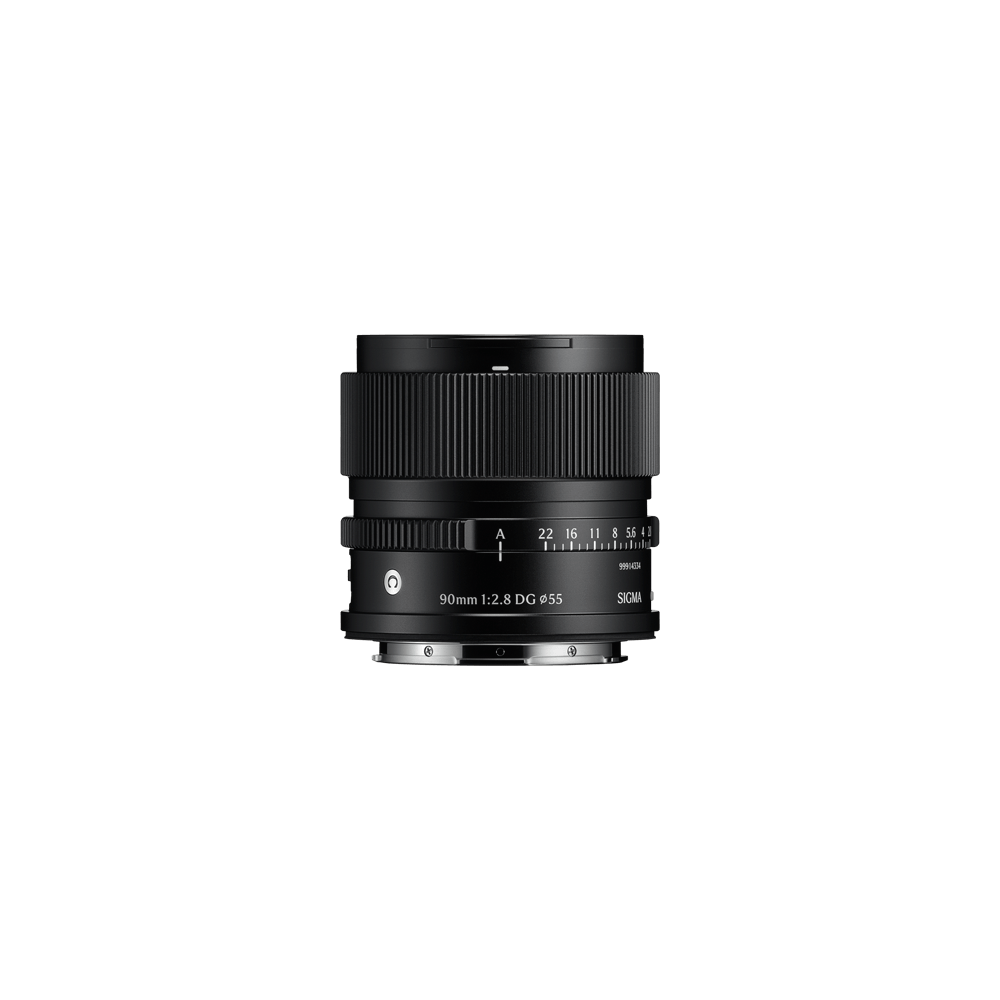

CONTEMPORARY

90mm F2.8 DG

CONTEMPORARY

90mm F2.8 DG

Available Mounts

L-MOUNT（BLACK）

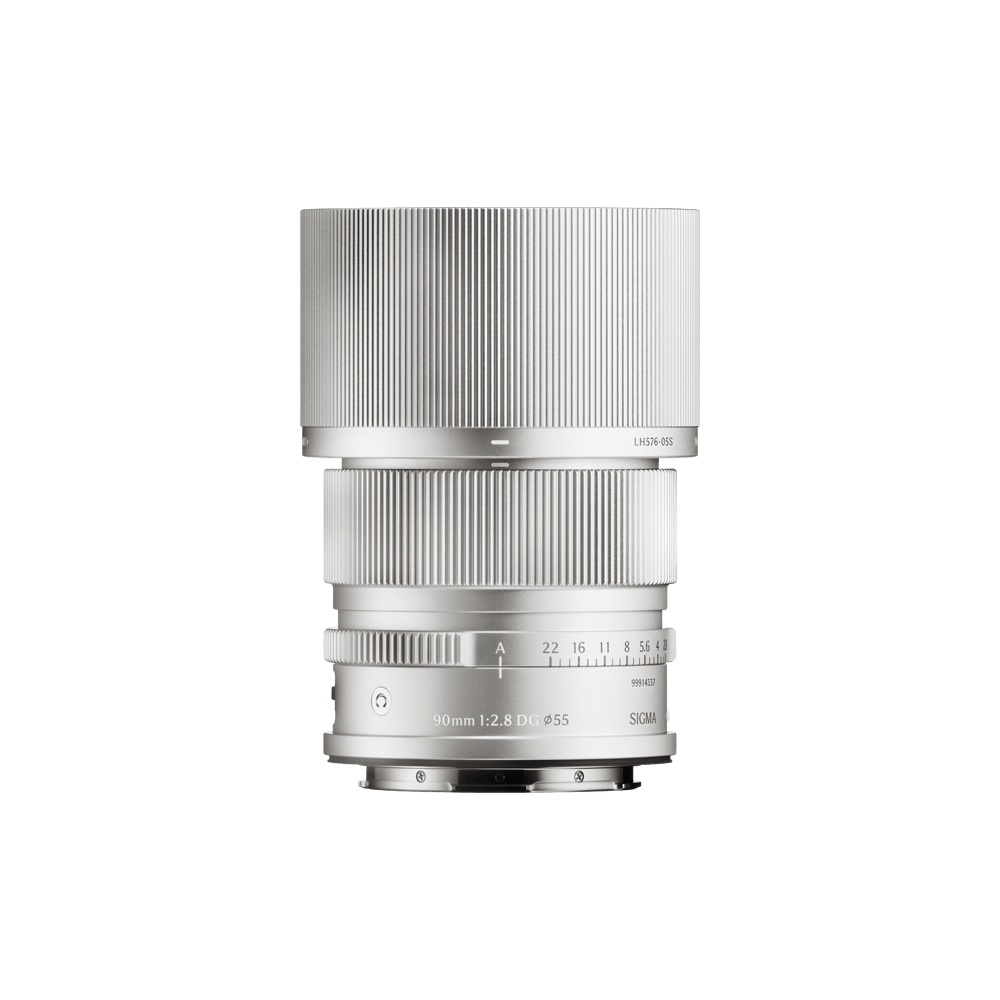

L-MOUNT（SILVER）
SONY E-MOUNT（BLACK）

Capture every inspiring moment.

Introducing Sigma’s all-new, mid-telephoto I series prime for mirrorless systems.
This compact 90mm F2.8 optic is versatile, well-built and offers stunning optical performance, making it perfect for portraits, close-ups, weddings and events.

A brand new 90mm F2.8 DG | Contemporary premium compact prime has been added to Sigma’s growing I series range. It joins four existing I series primes as well as the all-new 24mm F2 DG | Contemporary, offering superb optical performance, a bright F2.8 aperture, an all-metal build and a manual aperture ring. Designed especially for mirrorless systems it feels well-balanced on modern full-frame bodies, and boasts exceptional resolving power that can keep up with the latest ultra-high-resolution cameras.

With its versatile mid-telephoto focal length, the lens is the longest I series lens yet, but remains remarkably compact and light so that it is ideal for day-to-day use. It is fully-optimized for mirrorless systems with ultra-fast and accurate AF performance, and it boasts outstanding optical capabilities. The rich, smooth bokeh makes for attractive backgrounds, which is perfect for portraits, and the minimum focusing distance of 50cm allows photographers to get closer to their subject.

This high-quality, everyday lens is able to bring scenes to life with its beautiful rendering and ultra-sharp optics, all in a portable, robust and tactile lens body.

Camera Type	Mirroless
Corresponding Mount	L-Mount, Sony E-Mount
Sensor Format	Full-frame [DG]
Lens Construction	11 elements in 10 groups (5 SLD and 1 aspherical lens elements)
Angle of View	27.0°
Number of Diaphragm Blades	9 (rounded diaphragm)
Minimum Aperture	F22
Minimum Focusing Distance	50cm / 19.7in.
Maximum Magnification Ratio	1:5
Filter Size	φ55mm
Dimensions (Diameter × Length)	L-Mount：φ64mm × 59.7mm / φ2.5in. × 2.4in. Sony E-mount：φ64mm × 61.7mm / φ2.5in. × 2.4in.
Weight	L-Mount：295g / 10.4oz. Sony E-mount：295g / 10.4oz.
Edition Number	C021 The three-digit code on the surface of the lens is to indicate the year the lens was first released. (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

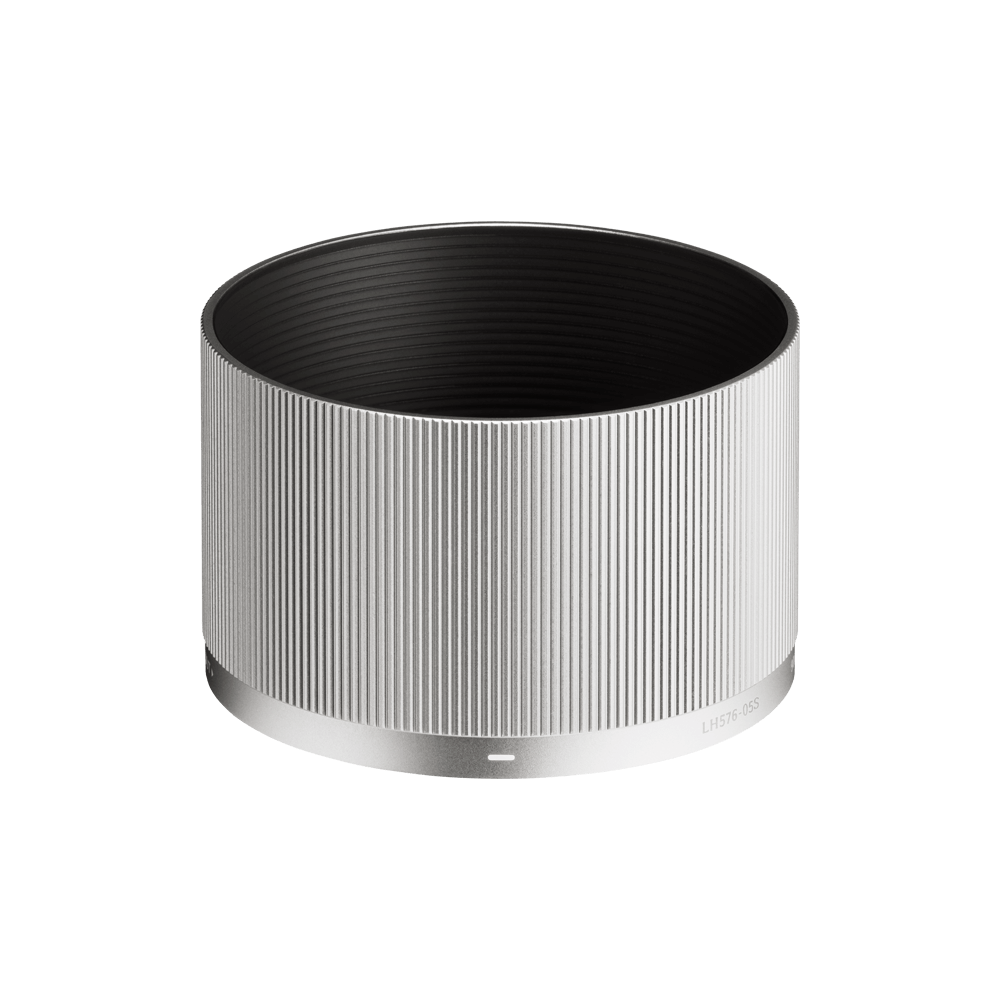

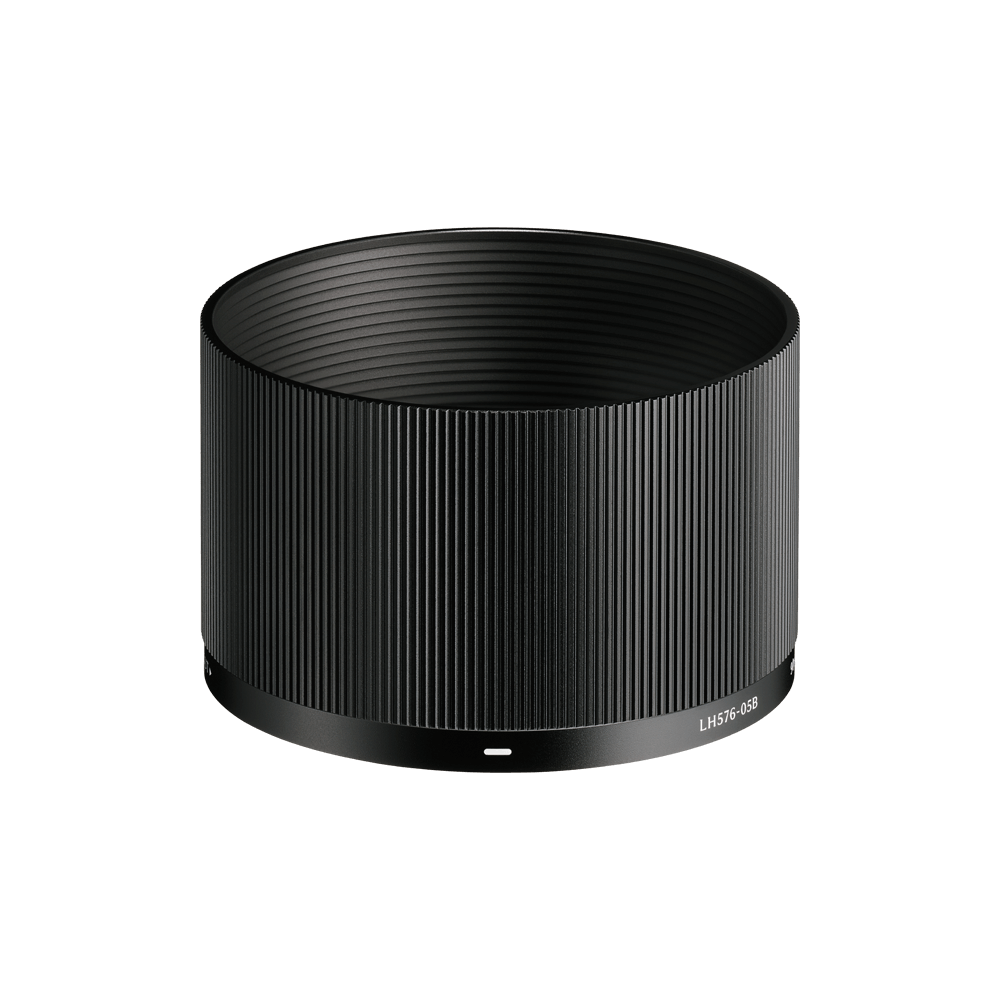

Supplied Accessories	LENS HOOD（LH576-05B／LH576-05S） MAGNETIC METAL LENS CAP（LCF55-02 MB／LCF55-02 MS） FRONT CAP（LCF-55 IV） REAR CAP（LCR III） Pouch
Mount / Product Barcode	L-Mount （Black）：00-85126-94204-5 L-Mount （Silver）：00-85126-94205-2 Sony E-mount （Black）：00-85126-94187-1
Camera Compatibility	LINK
	* L-Mount is a registered trademark of Leica Camera AG. * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

I series Premium Compact Primes for mirrorless users

The Sigma I series features full-frame-compatible lenses that offer mirrorless users a new and better alternative, both in the experience of shooting with the lens and in the impressive results it is able to achieve.
One of the key advantages of mirrorless cameras is their smaller form-factor, and this new 90mm optic is designed to be perfectly matched to these more compact systems without sacrificing performance. This combination of superb optical quality with exceptional portability, not previously possible with DSLR systems, will bring new opportunities to this and future generations of photographers.

Simultaneously, Sigma is aware that, in this day and age when we have such huge diversity when it comes to what we use to photograph, as represented by smartphones, people look for something more than a mere act of “taking pictures” when they choose to own a camera and lenses.
Sigma’s excellence in development and processing technologies has been built up since it was founded in 1961, and has become further sophisticated with the introduction of the Sigma Global Vision in 2012. With this as a base Sigma has given careful thought to how photographers use and enjoy their lenses, including optical design, advanced functionality, build quality and the experience of picking up and using the lens, and with all of this carefully considered the I series was born.

New standards of optical performance for the Contemporary line

The Sigma 90mm F2.8 DG | Contemporary boasts exceptional optical performance with a ultra-high resolving power to match the latest high-resolution mirrorless cameras.
The lens is built using the very latest optical technology, and includes five SLD glass elements. This helps to reduce axial chromatic aberration that cannot be corrected in-camera, allowing the lens to achieve high resolution and clear image quality with no color bleeding. A high-precision glass molded aspherical lens provides both high resolution and beautiful bokeh. Photographers can enjoy shooting with soft, large bokeh without coloration and this is something that only a full-frame lens is able to deliver.

The lens also utilizes the camera’s optical correction functionality, which is an advantage of mirrorless systems, Sigma’s optical designers were therefore able to concentrate on correcting aberrations that can only be corrected by the optical design, thereby improving rendering performance and reducing the size and weight of the lens.

With a minimum focusing distance of 50cm and a maximum magnification ratio of 1:5, close-up macro-style photography is possible. The lens highlights the subject, allowing photographers to focus in on fine details or create more abstract compositions.

The AF drive system incorporates a quiet, high-speed stepping motor, making it suitable for still images as well as video recording

Use of high-precision aspherical glass molded lenses

The surface of molds for glass molding, which is a process that forms optical components by pressing glass materials at high temperatures, requires ultra-high precision. Sigma uses high-precision molds whose surfaces are controlled with an accuracy of ±5 nanometers (0.000005 mm) or smaller. High precision aspherical glass molded lenses archives both good aberration correction and compact lens size.

*Mold for aspherical glass molded lenses

Exceptional I series build quality with a compact form-factor

All I series lenses have an all-metal construction. The precision-cut aluminum parts not only give the barrel a sleek, stylish finish, but provide superb durability, which improves the quality of the entire product. Metal materials are also used in internal structures that slide with the operation ring for added robustness. These high-precision components crafted with Sigma’s cutting-edge metalworking technology are also used in Sigma’s cine lens line-up for professional cinematographers and provides an exquisite feel to touch as well as sound effects, making photographers want to reach for it and play with it over and over again.

The cover ring between the focus ring and the aperture ring has hairline processing that is also used for the rear cylinder of the Art line. This covering functions as a finger hold when attaching or detaching the lens.

Magnetic metal lens cap

The I series lenses are accompanied by a dedicated magnetic metal lens cap, in addition to a normal plastic cap. This dedicated metal cap clips to the front surface of the lens magnetically. It is no exaggeration to say that this meticulously crafted cap represents the finishing touch for the I series..

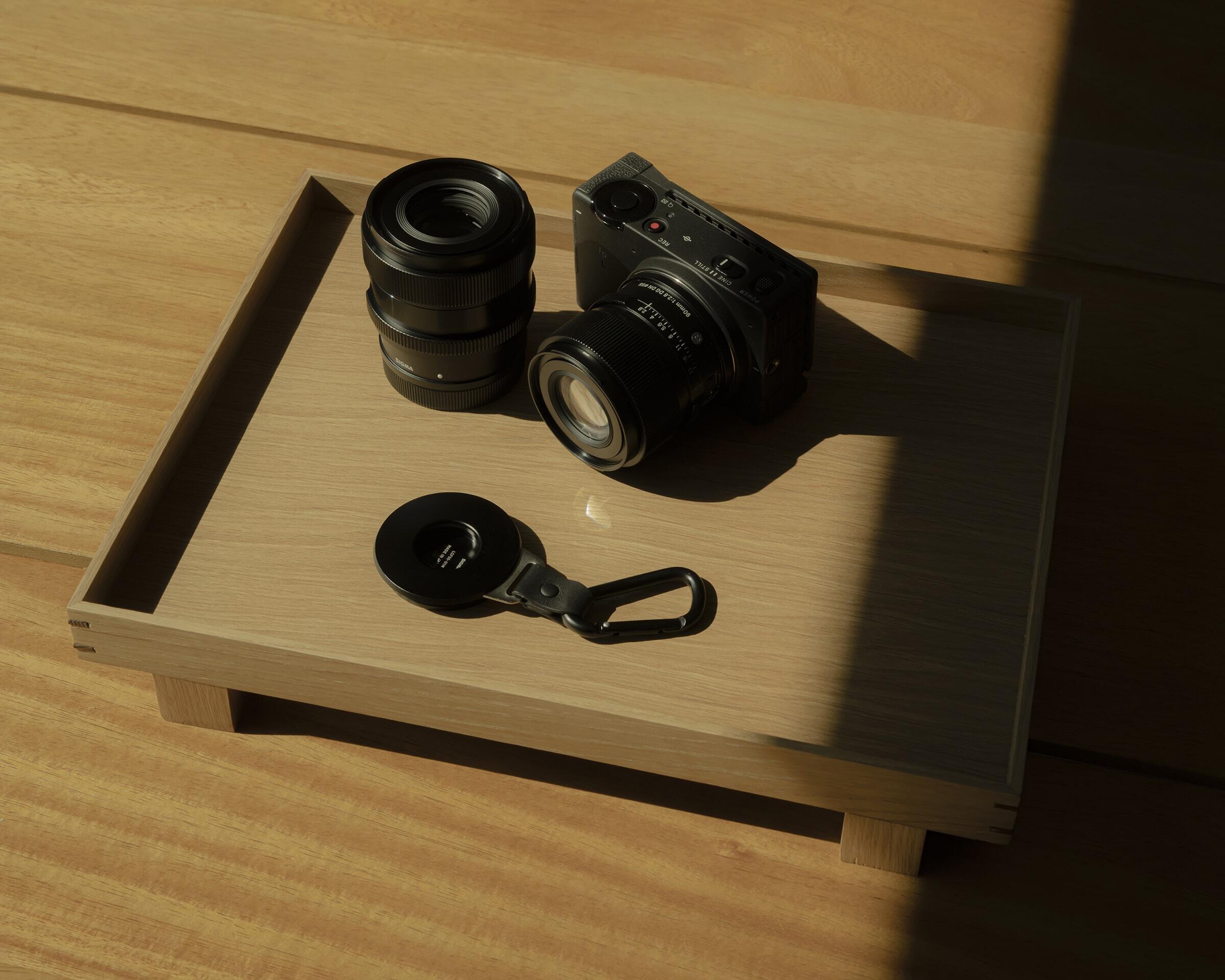

Magnetic metal lens cap holder LENS CAP HOLDER CH-11 (sold separately)

When a cap is removed from the lens it should have a proper place where it can be kept. Using this as a starting point, a cap holder using the magnetic force of the dedicated cap was created.
With the cap attached to the ring plate, and the plate clipped to a bag or belt, the cap is always within easy reach and is less likely to get lost. Plus, its elegant design is a stylish addition to a photographer’s equipment.

LENS CONSTRUCTION

MFT CHART

DIFFRACTION MTF

GEOMETRICAL MTF

MTF CHART GUIDE

The MTF (Modulation Transfer Function) is one of the measurements for evaluating a lens’ performance, and it shows how faithfully the contrast of the subject can be reproduced on the image plane. The horizontal axis shows the image height (distance from the center of the image in mm) and the vertical axis shows the contrast value (maximum value is 1).
The closer the 10 line pairs/mm curve is to 1, the higher the contrast and clarity of the lens is, and similarly, the closer the 30 line pairs/mm curve is to 1, the better the resolution and sharpness of the lens is.

*The MTF chart depicts the result at the wide-open aperture.
*For mirrorless lenses that support distortion correction, the horizontal axis shows the image height equivalent to when an L-Mount lens is attached to a Sigma L-Mount camera with distortion correction applied. (The effect of distortion correction may differ depending on the mount and camera used.)
*The spatial frequency indicates the variation on the image plane before distortion correction is performed.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

Stepping Motor

The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON'(AUTO).

Super Multi-Layer Coating

Sigma’s own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma’s Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Aperture ring

Aperture ring, designed to help users work intuitively

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

Linear focus / Non-linear focus (for L-Mount only）

A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With “non-linear focus,” the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.

Mount with Dust and Splash Resistant Structure

The lens mount incorporates rubber sealing to protect the mount from dust and water drops.

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Rounded diaphragm

The polygonal shape of a conventional iris diaphragm causes out-of-focus light points to appear polygonal. A rounded diaphragm is designed to produce rounded out-of-focus light points when opened to near maximum aperture. This creates attractive bokeh effects in many situations, such as when photographing a subject against an out-of-focus surface of water from which light is being reflected.

Lens construction: 8 elements in 7 groups (2 aspherical lenses)

Compatible with high-speed autofocus

Support for DMF, AF + MF

LENS HOOD （LH633-02B／LH633-02S）

Magnetic metal lens cap （LCF58-02 MB／LCF58-02 MS）

Compatible with Sigma USB DOCK UD-11 (sold separately; L-Mount only)

Designed to minimize flare and ghosting

9-blade rounded diaphragm

High-precision, durable brass bayonet mount
